Junction Box 3x20mm Bottom Entry | IP68 Rated | 6x 2.5mm² Active Terminals | by Wattmaster

BRAND: Wattmaster
SKU: ALCJBB1-120623
$248.60 List price: $300.90
+

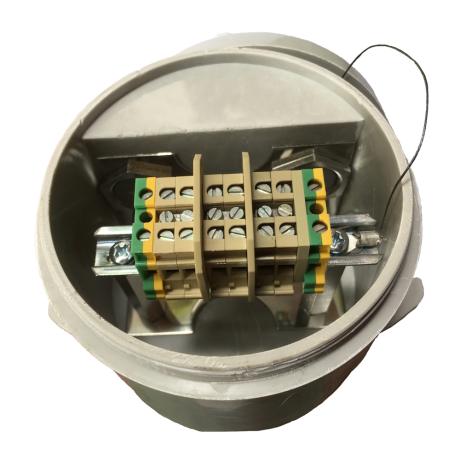

The Junction Box 3x20mm Bottom Entry is designed for secure electrical connections, featuring IP68 waterproof protection and 6x 2.5mm² active terminals. Ideal for both indoor and outdoor applications, this durable box ensures safety with integral earthing and a single thread lid engagement, making it perfect for residential, commercial, and industrial wiring needs.

Product Name/Title: Junction Box 3x20mm Bottom Entry | IP68 Rated | 6x 2.5mm² Active Terminals | by Wattmaster

Brand: Wattmaster

SKU: ALCJBB1-120623

Alternatively Known As: Waterproof Electrical Junction Box, IP68 Junction Box, Bottom Entry Junction Box, Cable Junction Enclosure

Technical Specifications
  • Material: Reinforced polymer
  • Ingress Protection: IP68
  • Cable Entries: 3 x 20mm bottom entry
  • Terminals: 6 x 2.5mm² active terminals, 2 x earth terminals, 3 x cross connects
  • Lid Engagement: Single thread
  • Standards Compliance: AS/NZS/IEC60529
  • Dimensions (H x L x W): 80mm x 150mm x 120mm
  • Weight: 0.5 kg
Key Features
  • Heavy duty reinforced polymer construction for durability
  • Integral earthing for safety
  • Single thread lid engagement for secure closure
  • Supplied complete with entry bungs for cable entry protection
  • Lid lanyard to prevent loss during maintenance
  • IP68 rated for waterproof and dustproof protection
  • 3 x 20mm bottom cable entries
  • Complete with DIN mount terminals for easy wiring
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP68 rating.
Applications
  • Electrical wiring and cable management in residential, commercial, and industrial settings
  • Outdoor and indoor electrical junction protection
  • Suitable for environments requiring waterproof and dustproof enclosures
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable construction reduces need for frequent replacements, minimizing waste
  • IP68 rating protects electrical connections from water ingress, preventing damage and environmental hazards
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Wattmaster Junction Box 3x20mm Bottom Entry IP68 is available for immediate purchase, ideal for secure and waterproof electrical connections in various applications.
