Junction Box Aluminium White Hikvision

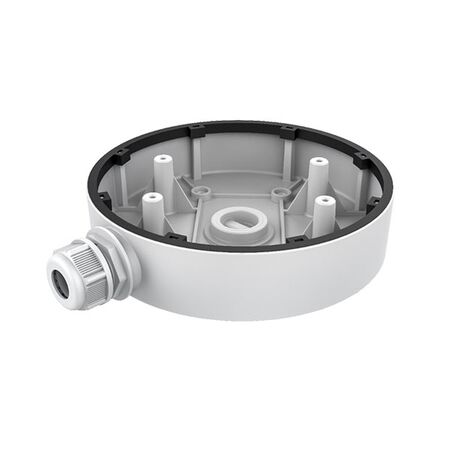

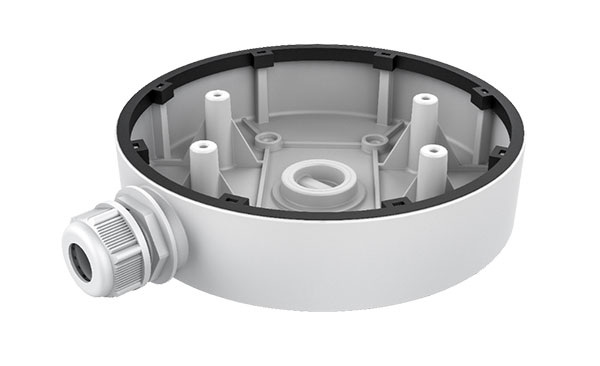

Hikvision white aluminium junction box, model DS-1280ZJ-DM55. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1280ZJ-DM55 Junction Box, CCTV Camera Mounting Box, Dome Camera Conduit Base
Technical Specifications
- Model: DS-1280ZJ-DM55
- Product Type: CCTV camera junction box
- Material: Aluminium alloy with spray-treated surface
- Colour: Hikvision white
- Dimensions: Ø155 mm × 36 mm
- Maximum Load Capacity: 2 kg
- Mounting Surface: Flat surface required
- Cable Management: Integrated cable outlet(s)
- Outdoor Use: Waterproof rubber sealing required
- Dimensions (H x L x W): 36mm x 155mm x 155mm
- Weight: 0.3 kg
Key Features
- Provides a concealed mounting base and cable-management cavity for compatible Hikvision dome cameras
- Aluminium alloy construction with white surface treatment
- Suitable for indoor and outdoor CCTV installations when correctly sealed
- Supports camera and accessory loads up to 2 kg
- Designed for installation on a flat surface
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV installer. Outdoor installations require appropriate waterproof rubber sealing, and any mains-voltage wiring must be completed by a licensed electrician.
Applications
- CCTV dome camera installations
- Indoor security camera mounting
- Outdoor security camera mounting with suitable waterproof sealing
- Commercial, retail, residential and light-industrial surveillance systems
Standards & Compliance
- CCTV system installation should be assessed against AS/NZS 62676.4 where applicable; no product-specific Australian/New Zealand compliance claim was identified for this passive mounting accessory. ([kpt-bj.com](https://kpt-bj.com/as-nzs-62676-4-2020-video-surveillance-systems-for-use-in-security-applications-part-4-application-guidelines-iec-62676-4-2014-mod-1594713419.html?utm_source=openai))
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Protects camera connections and can help extend the service life of installed CCTV equipment
- Durable construction can reduce replacement frequency and associated material waste
Warranty Information
Hikvision Australia warranty terms apply through authorised distribution channels. Hikvision's published RMA policy lists standard warranty periods by product category; this passive junction-box accessory is not separately identified, so confirm the applicable period with the authorised Australian distributor. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
