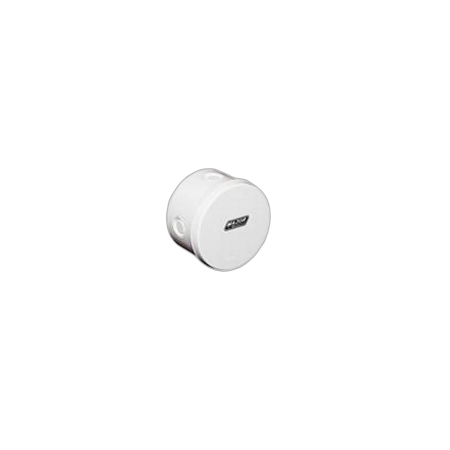

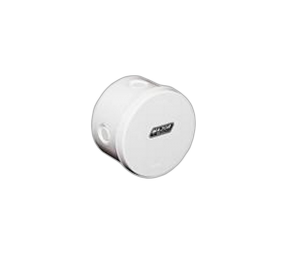

Junction Box IP55 Round Grey MajorTech
MajorTech junction box features IP55 rating and Round 80mm x 50mm dimensions in grey. Ideal for weatherproof cable connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VJ85G Round Junction Box, IP55 Electrical Junction Box, Weatherproof Cable Junction Box
Technical Specifications
- Ingress Protection: IP55
- Shape: Round
- Nominal Size: Ø80 x 50mm
- Knock-Outs: 4 positions
- Knock-Out Sizes: 1 x 20mm and 1 x 28mm per hole
- Impact Rating: IK08
- Material: High-grade flame-retardant, self-extinguishing ABS plastic
- Colour: Grey
- Operating Temperature: -5°C to 40°C
- Storage Conditions: Up to 40°C to 75°C, maximum 95% relative humidity
- Manufacturer Standards: IEC 60529 and IEC 60670
- Manufacturer Approvals and Quality: CE, RoHS, HF test, IK test and ISO 9001 manufacturing
- Dimensions (H x L x W): 50mm x 80mm x 80mm
- Weight: 0.1 kg
Key Features
- IP55 protection against dust ingress and water jets
- Round 80mm diameter enclosure with 50mm depth
- Multiple pre-formed knock-outs for flexible cable entry
- High-grade non-flammable ABS construction
- IK08 impact resistance for improved mechanical protection
- Suitable for indoor and light outdoor cable junction applications
- Knock-outs accommodate common 20mm conduit and cable entry requirements
Professional Installation Requirements
- Where used for mains electrical connections, installation and wiring should be completed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Cable entries and glands must be correctly fitted to maintain the intended IP rating.
Applications
- Indoor electrical cable junctions
- Light outdoor cable connections
- Low-voltage wiring installations
- HVAC, refrigeration and building-services wiring
- Conduit and cable routing junction points
Standards & Compliance
- Manufacturer states IEC 60529 and IEC 60670 compliance. The applicable Australian/New Zealand standard family for junction boxes is AS/NZS IEC 60670.1, with particular requirements for connecting boxes covered by AS/NZS IEC 60670.22:2012; verify local certification requirements before installation.
- Electrical installation use should follow AS/NZS 3000 wiring requirements.
Environmental Benefits
- ABS plastic construction is lightweight, reducing material and transport weight compared with metal enclosures.
- RoHS approval indicates restriction of specified hazardous substances in the product.
- Flame-retardant construction and impact resistance may extend service life and reduce premature replacement waste.
- ABS components can generally be directed to suitable plastics recycling streams where accepted by local facilities.
Warranty Information
MajorTech VETi junction boxes are listed with a 5-year extended warranty, subject to the manufacturer’s warranty terms, proof of purchase and applicable registration or claim requirements.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
