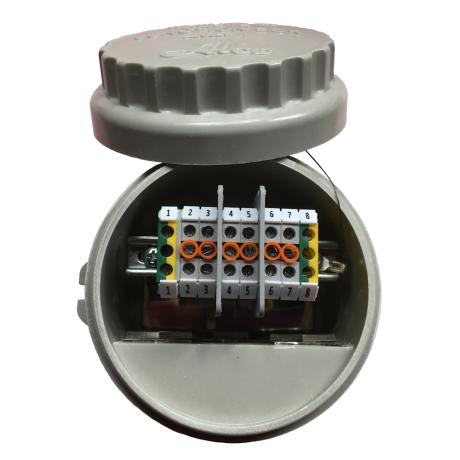

Junction Box IP68 | 3x20mm Bottom Entry | 6x 4mm² Active Terminals | 2x Earth | by Wattmaster
The Junction Box IP68 is designed for secure electrical connections, featuring 3x 20mm bottom entry points and 6x 4mm² active terminals. Ideal for both indoor and outdoor applications, this heavy-duty reinforced polymer box ensures waterproof and dustproof protection, making it perfect for residential, commercial, and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Junction Box IP68 | 3x20mm Bottom Entry | 6x 4mm² Active Terminals | 2x Earth | by Wattmaster
Brand: Wattmaster
SKU: ALCJBB1-130623E
Alternatively Known As: Waterproof Electrical Junction Box, IP68 Junction Box, Bottom Entry Junction Box, Weatherproof Junction Box
Technical Specifications
- Material: Heavy duty reinforced polymer
- Ingress Protection: IP68 rated
- Entry Points: 3x 20mm bottom entry
- Active Terminals: 6x 4mm²
- Earth Terminals: 2x
- Cross Connects: 3x
- Lid Engagement: Single thread
- Standards Compliance: AS/NZ/IEC60529
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Heavy duty reinforced polymer construction for durability
- Integral earthing for safety
- Single thread lid engagement for secure closure
- Supplied complete with entry bungs for cable management
- Lid lanyard included to prevent loss
- IP68 rated for waterproof and dustproof protection
- 3x 20mm bottom cable entry points
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP68 rating.
Applications
- Electrical wiring and cable management in residential, commercial, and industrial settings
- Outdoor and indoor electrical junction protection
- Suitable for environments requiring waterproof and dustproof enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- IP68 rating ensures protection against environmental elements, reducing risk of electrical faults and associated environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Junction Box 3x20mm Bottom Entry IP68 is available for immediate purchase, ideal for secure and waterproof electrical connections in various applications.
