Junction Box IP68 | 3x20mm Bottom Entry | 4x 2.5mm² Active Terminals | by Wattmaster
The Junction Box IP68 is designed for reliable electrical connections, featuring 3x20mm bottom entries and 4x 2.5mm² active terminals. Ideal for both indoor and outdoor applications, this heavy-duty reinforced polymer enclosure ensures dust and water protection, making it perfect for harsh environments. With integral earthing and secure lid engagement, it’s a safe choice for all your wiring needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Junction Box IP68 | 3x20mm Bottom Entry | 4x 2.5mm² Active Terminals | by Wattmaster
Brand: Wattmaster
SKU: ALCJBB1-120412
Alternatively Known As: Waterproof Junction Box, IP68 Junction Box, Bottom Entry Junction Box, Electrical Junction Enclosure
Technical Specifications
- IP Rating: IP68 (dust tight and protected against continuous immersion in water)
- Material: Heavy duty reinforced polymer
- Cable Entries: 3x 20mm bottom entry
- Terminals: 4x 2.5mm² active, 1x earth terminal
- Terminal Mounting: DIN rail internal mounting
- Lid Engagement: Single thread
- Earthing: Integral
- Dimensions (H x L x W): 80mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Bottom entry with 3x 20mm cable entries
- IP68 rated for dust and water ingress protection
- Heavy duty reinforced polymer construction for durability
- Integral earthing for safety
- Single thread lid engagement for secure closure
- Supplied complete with entry bungs
- Lid lanyard included for size 1 boxes

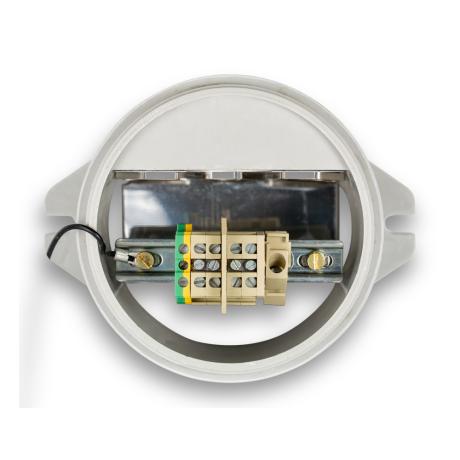

- Includes 4x 2.5mm² active terminals and 1x earth terminal
- Terminals mounted internally on DIN rail
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing.
Applications
- Electrical wiring and cable management in residential, commercial, and industrial settings
- Outdoor and indoor electrical junction connections requiring waterproof protection
- Suitable for use in harsh environments needing IP68 rated enclosures
Standards & Compliance
- Complies with AS/NZS/IEC 60529 for IP68 ingress protection rating
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- IP68 rating protects internal components, extending product lifespan
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The Wattmaster Junction Box 3x20mm Bottom Entry IP68 is available for immediate purchase, ideal for electrical wiring and cable management in harsh environments.
