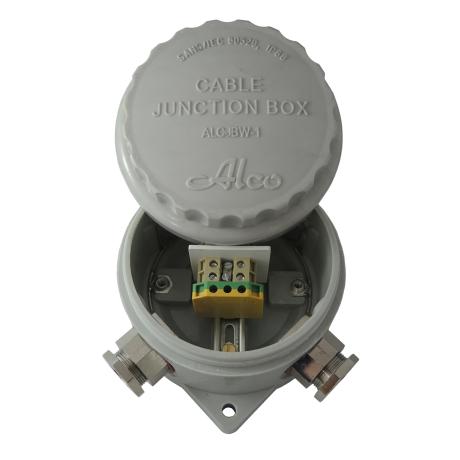

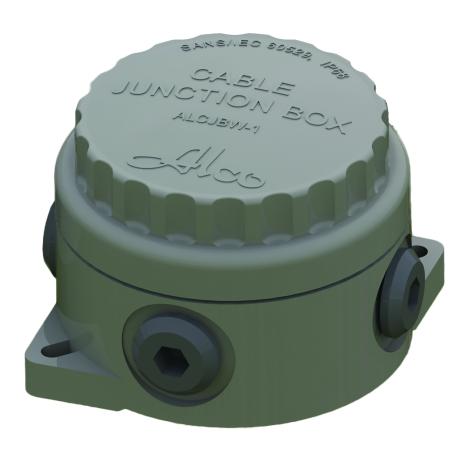

Junction Box IP68 | 4x20mm Side Entry | Weidmuller Active Terminals | Heavy Duty Polymer | by Wattmaster
The Junction Box IP68 is designed for reliable electrical connections in harsh environments, featuring 4x 20mm side entries and 4x 4mm² active terminals. Built from heavy-duty reinforced polymer, it ensures maximum protection against dust and water ingress, making it ideal for both indoor and outdoor installations. With integral earthing and secure lid engagement, this junction box is perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Junction Box IP68 | 4x20mm Side Entry | Weidmuller Active Terminals | Heavy Duty Polymer | by Wattmaster
Brand: Wattmaster
SKU: ALCJBW1-130422
Alternatively Known As: Weatherproof Junction Box, IP68 Junction Box, Electrical Junction Enclosure, Weidmuller Terminal Box
Technical Specifications
- Material: Heavy Duty Reinforced Polymer
- Ingress Protection: IP68
- Entry Points: 4x 20mm side entries
- Terminals: 4x 4mm² active terminals, 2x earth terminals
- Terminal Brand: Weidmuller
- Lid Engagement: Single thread with lanyard
- Earthing: Integral
- Dimensions (H x L x W): 80mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Heavy Duty Reinforced Polymer Construction
- Integral Earthing for safety
- Single thread lid engagement with lid lanyard for secure closure
- IP68 rated for dust and water ingress protection
- 4x 20mm side entry points for cable access
- Equipped with 4x 4mm² active terminals and 2x earth terminals
- Uses reliable Weidmuller terminals
- Complies with AS/NZ/IEC60529 standards for ingress protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP68 rating.
Applications
- Electrical wiring and cable management in industrial and commercial settings
- Outdoor and indoor electrical installations requiring weatherproof junction boxes
- Enclosure for electrical connections in harsh environments
Standards & Compliance
- Complies with AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- IP68 rating protects internal components from environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The Wattmaster Junction Box 4x20mm Side Entry IP68 with Weidmuller Active Terminals is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust and weatherproof junction solutions.
