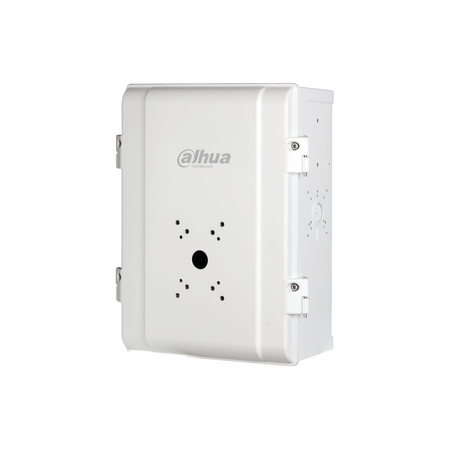

Junction Box for PTZ Cameras | IP66 & IK10 Rated | All-Aluminum Shell & Tamper Alarm | Optional Fan by Dahua Technology
This junction box for PTZ cameras features an IP66 rating for dust and water resistance, along with IK10 impact protection. Built for outdoor surveillance installations, it includes an all-aluminum shell and a tamper alarm function, ensuring robust protection and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Junction Box for PTZ Cameras | IP66 & IK10 Rated | All-Aluminum Shell & Tamper Alarm | Optional Fan by Dahua Technology
Brand: Dahua Technology
SKU: PFA143
Alternatively Known As: PTZ Camera Junction Box, Outdoor Surveillance Junction Box, IP66 Camera Housing Box
Technical Specifications
- Material: All-aluminum shell
- Ingress Protection: IP66
- Impact Protection: IK10
- Supports installation of power supply, switch, MNVR, and protective devices
- Optional fan for heat dissipation
- Tamper alarm function with optional alarm switch
- Dimensions (H x L x W): 150mm x 250mm x 250mm
- Weight: 2.5 kg
Key Features
- All-aluminum shell design providing robust protection
- IP66 rated for dust and water resistance
- IK10 rated for high impact resistance
- Optional fans available for high temperature heat dissipation
- Tamper alarm function with optional alarm switch
- Aesthetic design for easy and neat installation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper mounting and electrical connections.
Applications
- Outdoor surveillance camera installations
- Protection and housing for power supply, switches, MNVR, and protective devices
- Suitable for PTZ camera mounting and junction needs
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable aluminum construction reduces need for frequent replacements
- IP66 rating ensures long-lasting protection against weather, reducing electronic waste
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Dahua Junction Box IP66 IK10 for PTZ is available now for immediate purchase. Ideal for outdoor surveillance camera installations requiring robust protection.
