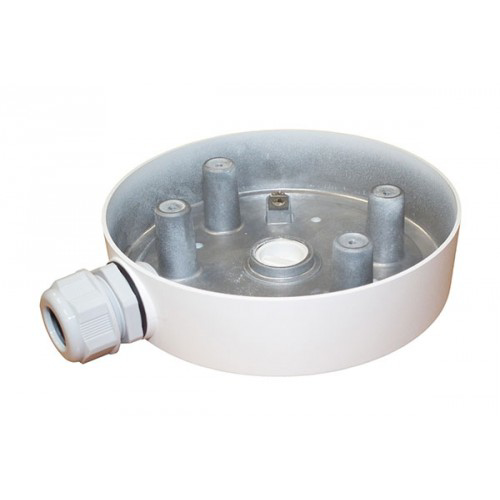

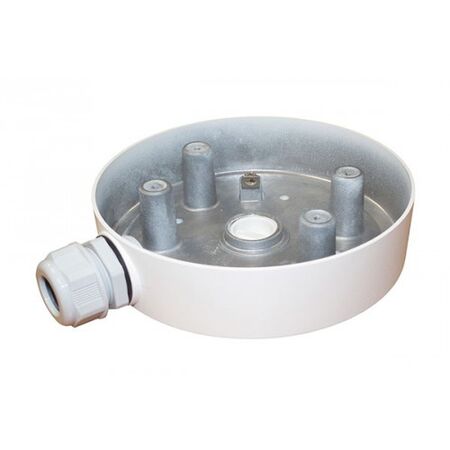

Junction Box to Suit 4 Inch PTZ Camera DS-1280ZJ-SD11 Hikvision
Hikvision junction box is made to Suit 4 inch PTZ cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PTZ Camera Junction Box, CCTV Camera Mounting Box, Hikvision PTZ Mounting Base
Technical Specifications
- Model: DS-1280ZJ-SD11
- Compatibility: 4-inch PTZ network cameras, including selected DS-2DE4A series models
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Cable Entry: Side outlet and bottom outlet
- Maximum Load Capacity: 5 kg
- Outdoor Use: Waterproof rubber required for outdoor applications
- Installation Surface: Flat surface required
- Mounting Requirement: Supporting wall must carry at least three times the combined camera and bracket weight
- Dimensions (H x L x W): 39.7mm x 157.7mm x 157.7mm
- Weight: 0.45 kg
Key Features
- Designed for compatible 4-inch PTZ cameras
- Aluminium alloy construction for strength and durability
- Side and bottom cable outlets for flexible cable routing
- Waterproof design when installed with the required waterproof rubber
- Provides a neat mounting and cable-management interface for CCTV installations
- Maximum load capacity of 5 kg
Applications
- Mounting compatible 4-inch PTZ security cameras
- Indoor CCTV installations
- Outdoor surveillance camera installations with appropriate waterproofing
- Commercial, industrial and residential security systems
Environmental Benefits
- Aluminium alloy can be recycled at end of service life
- Durable metal construction can extend service life and reduce replacement waste
- Supports long-term CCTV installations without requiring additional plastic mounting structures
Warranty Information
Hikvision Australia’s RMA policy lists accessories with a 24-month warranty, subject to regional terms, authorised distribution and proof of purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
