Trade Discount 25%

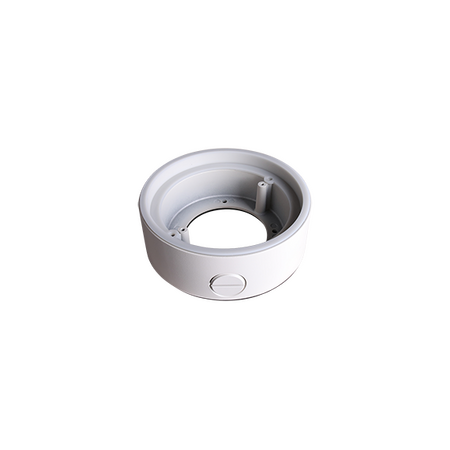

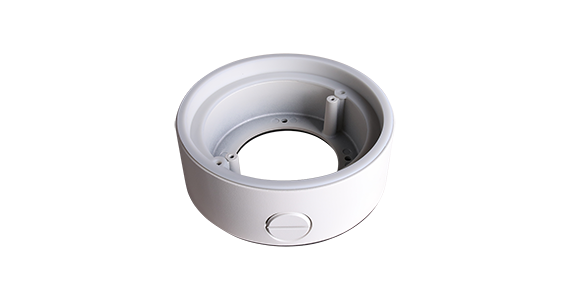

Junction Box to Suit CAAS Domes IP66 Weather-Resistant Ness
Ness junction box features IP66 rating and weather resistance to Suit CAAS domes. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-VFZJUNC Junction Box, CAAS Dome Junction Box, Outdoor Dome Camera Mounting Box, CCTV Dome Camera Junction Box
Technical Specifications
- Manufacturer: Digital Watchdog
- Product Type: Junction box for vandal dome and fisheye cameras
- Material: Aluminium alloy with finish spray treatment
- Installation Environment: Indoor and outdoor use
- Conduit Entry: 3/4-inch NPT tapped entry
- Camera Mounting: Two mounting options with M3 tapped mounting points
- Compatible Camera Series: MF, V8 and VF fisheye dome cameras
- Mounting Screw Options: 20 mm, 23 mm and 35 mm, depending on compatible camera
- Mounting Hole Diameter: 5 mm
- Dimensions (H x L x W): 50mm x 144mm x 144mm
- Weight: 0.4 kg
Key Features
- Designed to suit CAAS dome cameras
- Weather-resistant construction for outdoor CCTV installations
- Aluminium alloy housing with finish spray treatment
- Integrated cable routing through a 3/4-inch NPT conduit entry
- Two camera mounting configurations
- Supplied with camera mounting screws, wall screws, plastic anchors and mounting template
Applications
- Outdoor CCTV dome camera installations
- Surface mounting of compatible Digital Watchdog vandal dome cameras
- Surface mounting of compatible Digital Watchdog fisheye cameras
- Commercial, industrial and residential security systems
Environmental Benefits
- Aluminium construction is recyclable at end of product life
- Durable metal construction can support a longer service life and reduce replacement waste
- Weather-resistant construction helps protect camera cabling and mounting hardware in outdoor installations
Warranty Information
Ness Corporation’s general warranty provides 3 years from date of purchase for Ness manufactured or supplied products, subject to the applicable warranty terms.
Available Now
Listed through Ness Australia, but Digital Watchdog identifies this model as discontinued; confirm current availability with an authorised Australian distributor.
