Trade Discount 25%

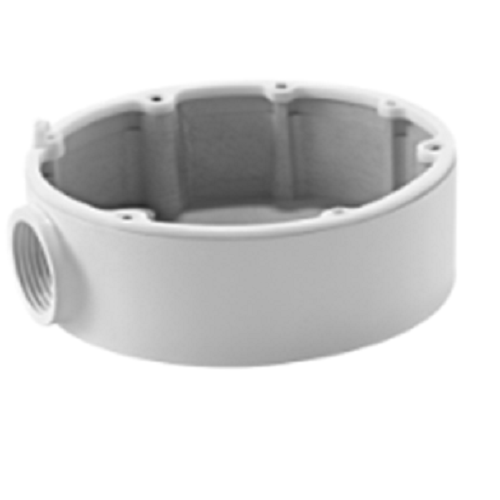

Junction Box to Suit Dome Camera Hikvision
Hikvision dome camera junction box features a junction mounting base for cabling. Ideal for CCTV installs using compatible Hikvision dome cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1280ZJ-DM8 Junction Box, Dome Camera Junction Mounting Base, CCTV Camera Cable Junction Box
Technical Specifications
- Model: DS-1280ZJ-DM8
- Material: Aluminium alloy
- Colour: Hikvision white
- Mounting: Flat wall or ceiling surface
- Cable Entry: Side inlet and bottom inlet
- Design: Water-resistant junction box
- Maximum Load: 1 kg
- Camera Compatibility: Selected Hikvision dome and turret cameras
- Installation Accessories: Mounting plugs, screws and camera fixing screws
- Dimensions (H x L x W): 35mm x 126.7mm x 126.7mm
- Weight: 0.21 kg
Key Features
- Provides a secure mounting base for compatible Hikvision dome cameras
- Conceals and protects camera cabling and connections
- Aluminium alloy construction with surface spray treatment
- Side and bottom cable entry options
- Interchangeable bottom waterproof cover and side gland nut
- Suitable for indoor and appropriately sealed outdoor CCTV installations
- Supports a clean, low-profile surface-mounted camera installation
Professional Installation Requirements
- No special licensed installation is required for the passive junction box itself. Installation should follow the camera manufacturer's instructions, with suitable sealing for outdoor use and connection work completed by an appropriately qualified security or data-cabling professional where required.
Applications
- Surface mounting compatible Hikvision dome and turret cameras
- Residential CCTV installations
- Commercial and retail security camera systems
- Outdoor CCTV installations where cable entries are correctly sealed
- Concealing camera cable connections on wall or ceiling-mounted cameras
Standards & Compliance
- Suitable for incorporation into CCTV installations designed and installed in accordance with AS/NZS 62676.4:2020; the manufacturer does not state separate product-level compliance for this passive mounting accessory.
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Protects cable connections from moisture and mechanical damage when correctly sealed
- Lightweight construction reduces material use and installation handling requirements
Warranty Information
Hikvision's Asia-Pacific RMA policy lists a 24-month default warranty for lens and accessory products, subject to authorised supply, proof of purchase and the applicable warranty terms.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors, subject to distributor stock.
