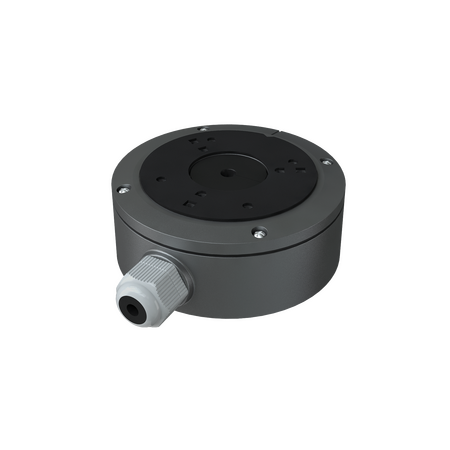

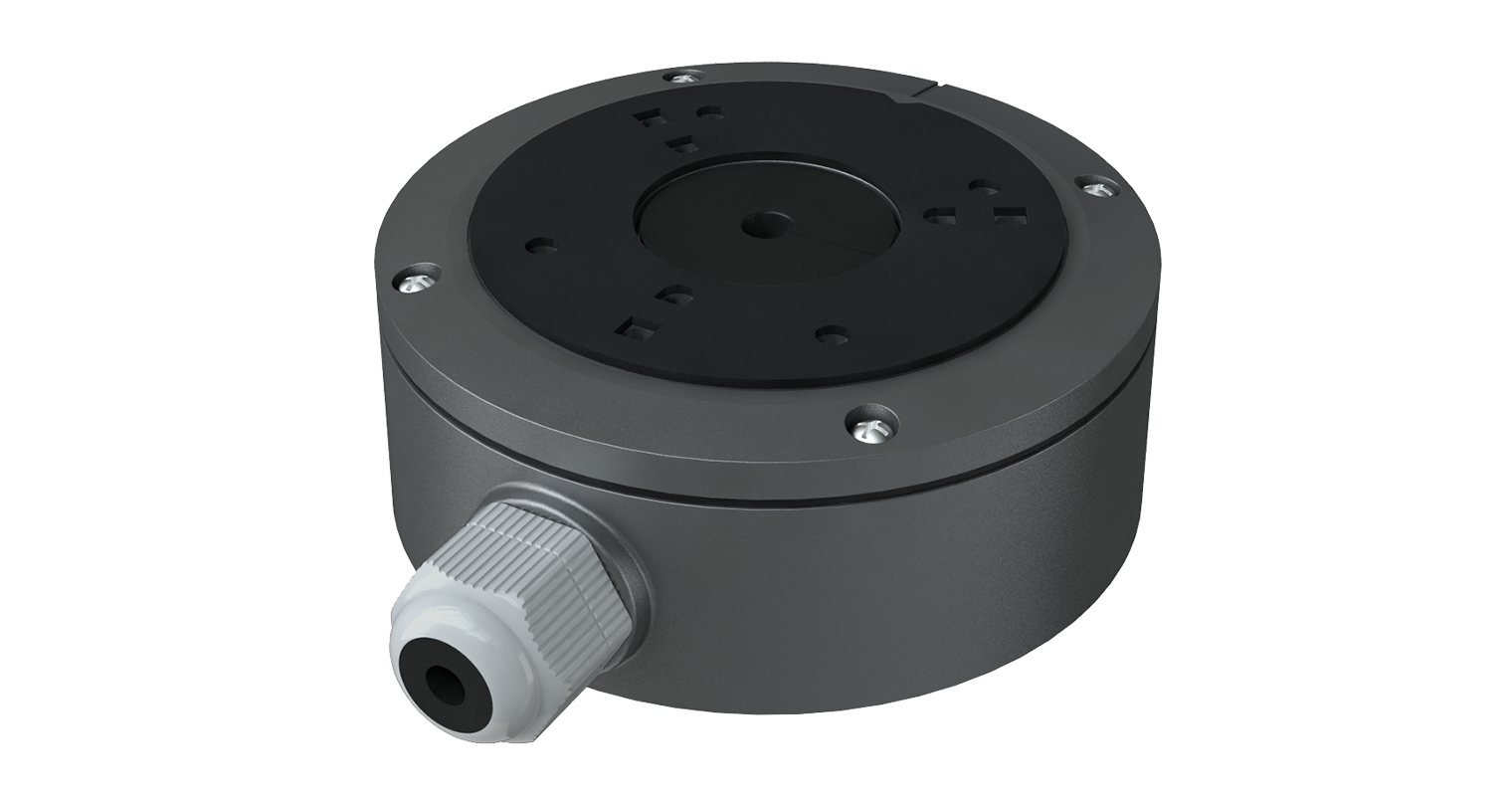

Junction Box to Suit MB Series Bullets Weather-Resistant IP66 Ness
Ness junction box features IP66 rating and secure cable management to Suit MB series bullets. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-MBTJUNC Junction Box, Digital Watchdog MB Bullet Camera Junction Box, CCTV Camera Junction Box
Technical Specifications
- Model: DWC-MBTJUNC
- Material: Aluminium alloy with sprayed finish
- Colour: Dark grey
- Ingress Protection: IP66
- Conduit Entries: Front and side 1/2-inch / G1/2 entries
- Installation Type: Fixed camera accessory
- Application Environment: Indoor and outdoor
- Cable Management: Internal camera cable storage
- Compatibility: Digital Watchdog MB series bullet cameras
- Dimensions (H x L x W): 50mm x 143.3mm x 117.9mm
- Weight: 0.38 kg
Key Features
- IP66-rated weather-resistant enclosure
- Designed to suit MB series bullet cameras
- Aluminium alloy construction for outdoor durability
- Front and side conduit entry options
- Provides concealed camera cable storage
- Supports a neat and secure CCTV installation
- Suitable for indoor and outdoor applications
Professional Installation Requirements
- Installation should be completed by a suitably competent CCTV installer. Ensure all cable glands, conduit entries and mounting points maintain the enclosure’s IP66 protection.
Applications
- Mounting MB series bullet security cameras
- Outdoor CCTV installations
- Indoor CCTV installations requiring concealed cable management
- Commercial, industrial and residential surveillance systems
Standards & Compliance
- AS/NZS 60529: IP Code reference applicable to the stated IP66 enclosure rating
Environmental Benefits
- Aluminium construction is recyclable at end of service life
- Durable weather-resistant construction can extend service life and reduce replacement waste
- Passive accessory with no operating electricity consumption
Warranty Information
1-year limited manufacturer warranty. Ness’s general policy states three years for Ness-manufactured or supplied products unless product-specific warranty terms apply; the product-specific one-year term should be followed where applicable.
Available Now
Listed through Ness Australia and authorised security distributors; the manufacturer identifies the DWC-MBTJUNC as discontinued, so availability is subject to remaining distributor stock.
