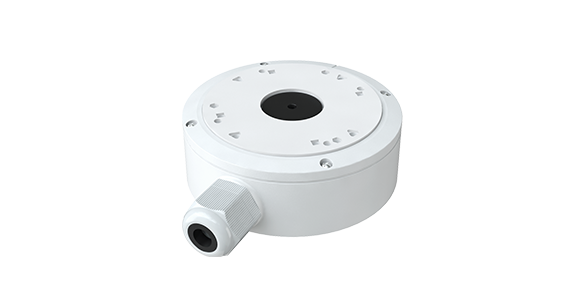

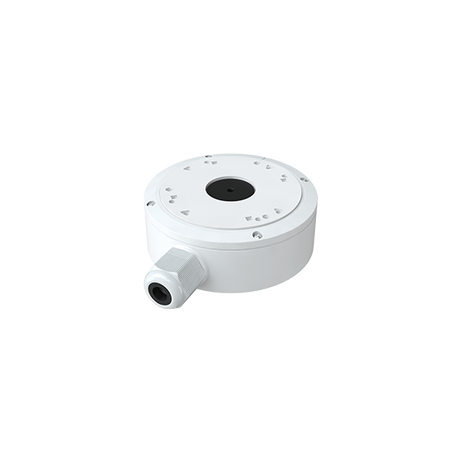

Junction Box to Suit MT9 Series Turrets Powder-Coated Aluminium Ness
Ness junction box features powder-coated aluminium and weather resistance to Suit MT9 series turrets. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Watchdog DWC-MT9JUNC Junction Box, T9 Turret Camera Junction Box, CCTV Camera Back Box
Technical Specifications
- Compatibility: Digital Watchdog MT9/T9 series fixed-lens turret cameras
- Material: Aluminium alloy
- Finish: Powder-coated white
- Installation Environment: Indoor or outdoor use
- Conduit Entries: Side and front 3/4-inch entries
- Cable Management: Enclosed camera cable and connector storage
- Operating Temperature: -40°C to 60°C
- Operating Humidity: 10% to 90% RH
- Accessory Weight: 0.512 kg
- Manufacturer Model: DWC-MT9JUNC
- Ness SKU: 123-400
- Dimensions (H x L x W): 50mm x 171.6mm x 139.3mm
- Weight: 0.512 kg
Key Features
- Purpose-built for MT9 series turret cameras
- Weather-resistant enclosure for protecting camera connections
- Powder-coated aluminium construction
- Provides concealed cable and connector management
- Side and front conduit entry options support flexible installation
- Suitable for indoor and outdoor CCTV applications
- Includes mounting hardware, mounting template, camera mounting screws and waterproof rings
Applications
- CCTV camera installations
- Commercial and industrial security surveillance
- Outdoor turret camera mounting
- Retail, office and residential security systems
- Installations requiring protected cable connections and a neat camera finish
Standards & Compliance
- Relevant to CCTV/video surveillance systems covered by AS/NZS 62676.1.1:2020; product-specific Australian/New Zealand certification was not stated
Environmental Benefits
- Aluminium construction is durable and widely recyclable at end of service life
- Weather-resistant protection can extend the service life of camera connections and reduce replacement waste
- Powder-coated finish provides corrosion protection without requiring a separate protective enclosure
Warranty Information
1-year manufacturer warranty specified for the Digital Watchdog DWC-MT9JUNC. Ness also publishes a general three-year warranty for Ness-manufactured or supplied products unless otherwise specified; the specific product warranty takes precedence.
Available Now
Available through Ness and authorised Australian security-equipment distributors, subject to distributor stock levels.
