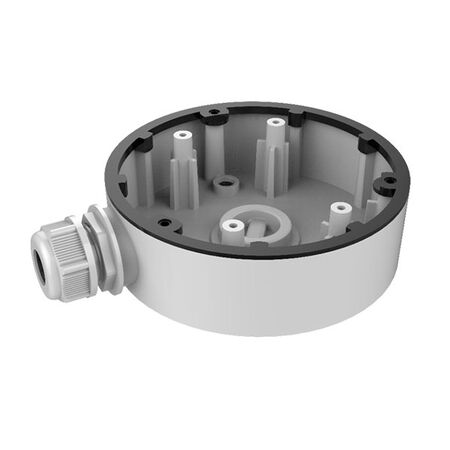

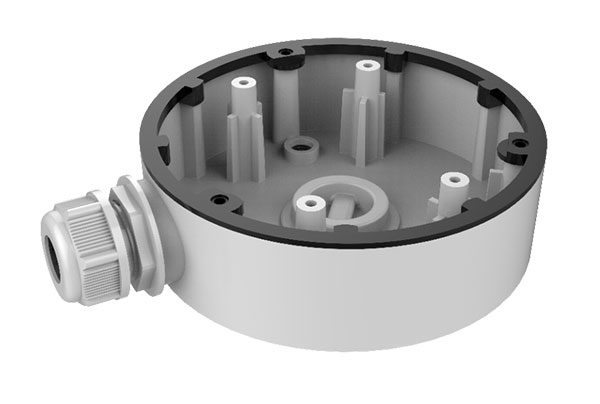

Junction Box White Hikvision
Hikvision white junction box, model DS-1280ZJ-DM46. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Camera Junction Box, CCTV Camera Mounting Box, Dome Camera Junction Box
Technical Specifications
- Model: DS-1280ZJ-DM46
- Appearance: Hikvision White
- Material: Aluminium alloy with surface spray treatment
- Camera Mounting Interface: Ø83.5 mm
- Installation: Bottom or side cable outlet
- Maximum Load Capacity: 4.5 kg
- Installation Surface: Flat surface required
- Outdoor Use: Waterproof rubber required for outdoor applications
- Dimensions (H x L x W): 37.2mm x 120mm x 120mm
- Weight: 0.25 kg
Key Features
- Provides a neat mounting base for compatible Hikvision CCTV cameras
- Conceals camera cables and connectors
- Supports bottom and side cable outlets
- Aluminium alloy construction for strength and durability
- Suitable for indoor and outdoor installations when correctly sealed
- Maximum load capacity of 4.5 kg
Applications
- Mounting compatible Hikvision dome and bullet CCTV cameras
- Indoor security camera installations
- Outdoor CCTV installations with appropriate waterproof sealing
- Commercial, industrial and residential surveillance systems
Environmental Benefits
- Aluminium alloy is recyclable at the end of the product’s service life
- Durable metal construction can reduce replacement frequency and associated waste
- Supports long-term CCTV system installation without requiring a separate plastic enclosure
Warranty Information
Hikvision Australia’s RMA policy lists Hikvision accessories with a 24-month warranty, subject to applicable sales and purchase terms.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
