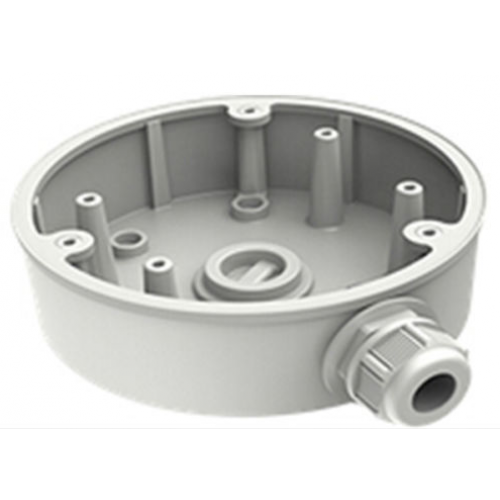

Junction Mount Base DS-1280ZJ-PT6 Hikvision
Hikvision junction mount base, model DS-1280ZJ-PT6. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Junction Box, Dome Camera Mounting Base, CCTV Camera Junction Box
Technical Specifications
- Model: DS-1280ZJ-PT6
- Product Type: Junction box for dome cameras
- Mounting Type: Wall mounting
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Cable Entry: Side and bottom entry
- Ingress Protection: Waterproof design; waterproof rubber required for outdoor installation
- Maximum Load Capacity: 4.5 kg
- Mounting Surface: Flat surface required
- Dimensions (H x L x W): 42mm x 137mm x 137mm
- Weight: 0.28 kg
Key Features
- Designed for wall mounting Hikvision dome cameras
- Aluminium alloy construction for durability and corrosion resistance
- Interchangeable bottom waterproof cover and side gland nut
- Side and bottom cable entry options
- Suitable for indoor and outdoor CCTV installations when correctly sealed
- Maximum bracket load capacity of 4.5 kg
Applications
- Mounting Hikvision dome cameras to walls
- Providing a protected cable junction behind CCTV dome cameras
- Indoor commercial, residential and industrial CCTV installations
- Outdoor CCTV installations where suitable waterproof sealing is applied
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Durable metal construction can reduce replacement frequency and associated waste
- Passive mounting component requires no electrical power during operation
Warranty Information
Hikvision Australia lists Hikvision accessories with a 36-month warranty under its RMA policy, subject to applicable sales and purchase terms.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
