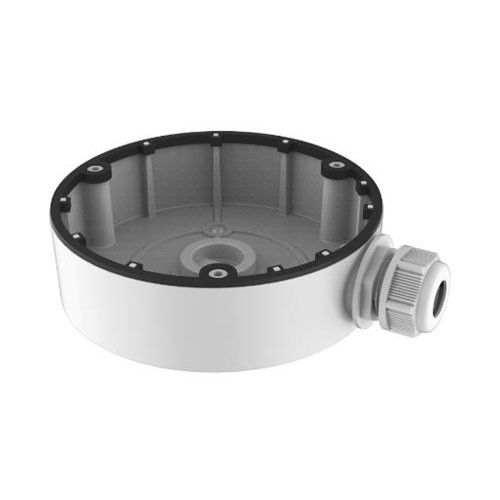

Junction Mount Base to Suit Turret DS-1280ZJ-DM8 Hikvision
Hikvision junction mount base is made to Suit turret cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1280ZJ-DM8 Junction Box, Turret Camera Mounting Base, Dome Camera Junction Box
Technical Specifications
- Model: DS-1280ZJ-DM8
- Product Type: Junction box for turret and dome cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Camera Compatibility: Selected Hikvision turret and dome cameras; verify the camera accessory table
- Cable Entry: Side and bottom inlet
- Ingress Protection: Waterproof design when installed with the supplied waterproof rubber
- Maximum Load: 1 kg
- Mounting: Flat wall or ceiling surface
- Installation Hardware: Mounting plugs, screws and camera fixing screws
- Dimensions (H x L x W): 35mm x 126.7mm x 126.7mm
- Weight: 0.21 kg
Key Features
- Provides a secure mounting base and cable-management point for compatible turret cameras
- Aluminium-alloy construction for low weight and durability
- Side and bottom cable entry options
- Interchangeable bottom waterproof cover and side gland nut
- Suitable for indoor and outdoor CCTV installations when correctly sealed
- Designed for selected Hikvision turret and dome camera models
Applications
- CCTV turret camera installations
- Dome camera wall mounting
- Dome camera ceiling mounting
- Indoor and outdoor security camera installations
- Installations requiring concealed cable entry and junction protection
Environmental Benefits
- Aluminium alloy is recyclable at end of service life
- Durable metal construction can reduce replacement frequency and associated waste
- Passive mounting accessory requires no operating power
Warranty Information
Warranty is subject to Hikvision Australia and authorised-distributor terms. The published Hikvision five-year project-oriented warranty list does not specifically identify this mounting accessory; confirm the applicable warranty period with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
