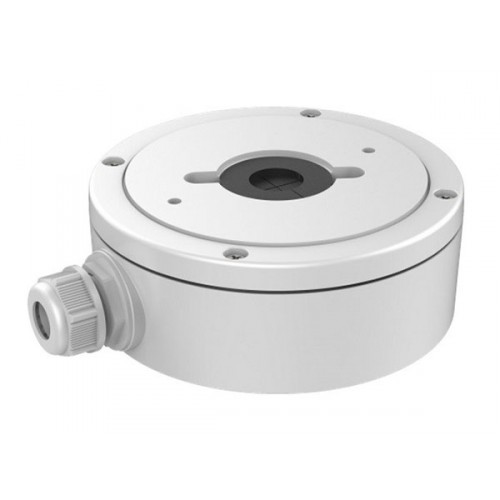

Junction Mount Box to Suit Mini Dome Camera Hikvision

BRAND: Ness
SKU: 104-931
$51.60 List price: $68.80
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision junction mount box for mini dome cameras features a junction base for cable entry. Ideal for CCTV installs.

Alternatively Known As: Hikvision Mini Dome Junction Box, Dome Camera Mounting Box, CCTV Junction Mount

Technical Specifications
  • Model: DS-1280ZJ-DM22
  • Product Type: Junction box for dome cameras
  • Material: Aluminium alloy with surface spray treatment
  • Finish: Hikvision white
  • Design: Waterproof junction box
  • Maximum Load Capacity: 4.5 kg
  • Installation Surface: Flat wall required
  • Outdoor Installation: Waterproof rubber required
  • Dimensions (H x L x W): 53.4mm x 164.8mm x 137mm
  • Weight: 0.52 kg
Key Features
  • Designed for Hikvision mini dome cameras
  • Provides a protected junction point for camera cabling
  • Aluminium alloy construction for strength and durability
  • Waterproof design for suitable outdoor installations when correctly sealed
  • Supports side and bottom cable entry
  • Maximum load capacity of 4.5 kg
Applications
  • Mounting Hikvision mini dome CCTV cameras
  • Indoor CCTV installations
  • Outdoor CCTV installations with suitable waterproof sealing
  • Commercial, residential and light-industrial surveillance systems
Standards & Compliance
  • Relevant CCTV installation guidance: AS 4806.2-2006
  • Relevant video surveillance system requirements: AS/NZS 62676.1.1:2020
  • Where connected to fixed electrical wiring, installation should comply with AS/NZS 3000
Environmental Benefits
  • Aluminium alloy construction is durable and recyclable at end of service life
  • Protects camera cable connections from environmental exposure, helping extend system service life
  • Robust mounting construction can reduce replacement frequency and installation waste
Warranty Information

Warranty coverage should be confirmed with the authorised Australian distributor or supplier. Hikvision warranty support is generally dependent on purchase through an authorised distribution channel.

Available Now

Available through Hikvision and authorised Australian CCTV distributors.
