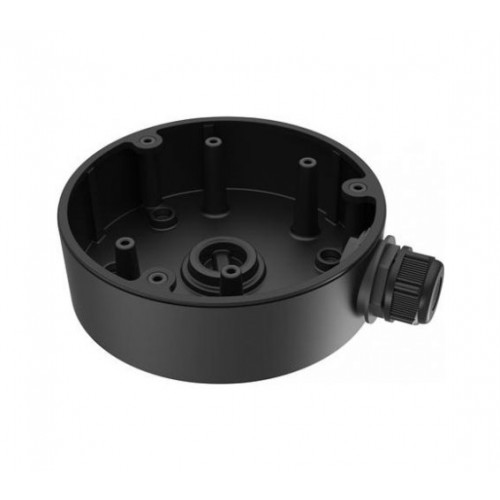

Junction Mounting Base Black DS-1280ZJ-DM21 Hikvision
Hikvision junction mounting base features a black finish. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Dome Camera Junction Box, CCTV Junction Mount, Camera Mounting Base
Technical Specifications
- Product Type: Junction box for dome cameras
- Material: Aluminium alloy
- Finish: Black surface spray treatment
- Mounting: Flat-surface installation
- Cable Entry: Side and bottom outlets
- Protection: Waterproof design with interchangeable bottom cover and side gland nut
- Maximum Load Capacity: 4.5 kg
- Camera Compatibility: Hikvision compatible dome cameras
- Installation Requirement: Waterproof rubber required for outdoor applications
- Dimensions (H x L x W): 42mm x 137mm x 137mm
- Weight: 0.28 kg
Key Features
- Black aluminium-alloy construction
- Designed for dome camera installations
- Side and bottom cable outlets
- Interchangeable bottom waterproof cover
- Side gland nut for cable entry
- Waterproof design for suitable outdoor installations
- Supports camera and mount loads up to 4.5 kg
Applications
- Mounting Hikvision dome cameras
- Indoor CCTV and security camera installations
- Outdoor dome-camera installations where suitable waterproofing is provided
- Commercial, residential and light-industrial surveillance systems
Standards & Compliance
- No product-specific Australian/NZ conformity standard was identified for this passive mounting accessory; CCTV system planning and installation may be undertaken with reference to AS/NZS 62676.4:2020 where applicable.
Environmental Benefits
- Aluminium alloy is recyclable at end of service life
- Durable metal construction can reduce replacement frequency and installation waste
- Reusable mounting accessory suitable for servicing or replacing compatible dome cameras
Warranty Information
Hikvision warranty terms vary by product category and sales channel. Confirm the applicable warranty for this mounting accessory with the authorised Australian distributor before purchase; Hikvision Australia states that warranty support is tied to authorised distribution channels. ([pro-av.hikvision.com](https://pro-av.hikvision.com/au-en/newsroom/latest-news/2022/hikvision-ebay-online-market-statement/?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
