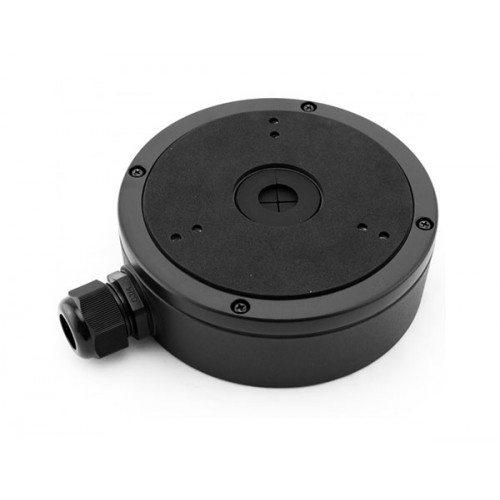

Junction Mounting Base Black DS-1280ZJ-M Hikvision
Hikvision junction mounting base features a black finish. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Black Junction Box, CCTV Camera Junction Box, Camera Mounting Base
Technical Specifications
- Product Type: CCTV camera junction box and mounting base
- Material: Aluminium alloy with surface spray treatment
- Colour: Black
- Compatibility: Selected Hikvision dome and bullet-style cameras
- Cable Routing: Side and bottom outlets
- Maximum Load Capacity: 4.5 kg
- Installation Environment: Indoor or outdoor with waterproof rubber protection
- Mounting Surface: Flat surface required
- Dimensions (H x L x W): 53.4mm x 184.8mm x 157mm
- Weight: 0.621 kg
Key Features
- Black finish for discreet CCTV installations
- Aluminium alloy construction
- Side and bottom cable outlets
- Interchangeable bottom waterproof cover and side gland nut
- Suitable for indoor and outdoor camera installations
- Supports camera loads up to 4.5 kg
- Designed to protect and conceal camera cable connections
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV installer. Use appropriate fixings for the mounting surface, ensure the wall can support at least three times the combined camera and bracket weight, and fit waterproof rubber protection for outdoor installations.
Applications
- CCTV camera mounting on walls or other flat surfaces
- Outdoor security camera installations
- Indoor security camera installations
- Housing and protecting camera cable connections
- Compatible Hikvision dome and bullet-camera systems
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Passive mechanical accessory requires no operating power
Warranty Information
Warranty coverage should be confirmed with the authorised Australian distributor. Hikvision Australia states that warranty and local support are associated with products purchased through authorised distribution partners.
Available Now
Available through Hikvision and authorised Australian CCTV distributors.
