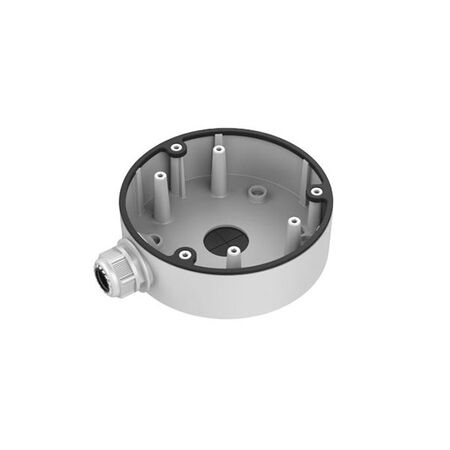

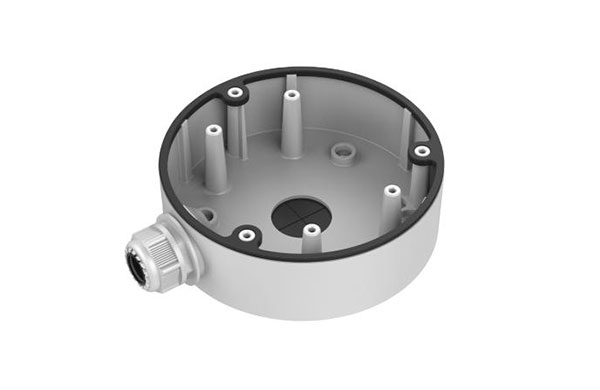

Junction Mounting Base DS-1280ZJ-DM21 Hikvision
Hikvision junction mounting base features camera junction mounting. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Dome Camera Junction Box, CCTV Camera Back Box, Camera Mounting Base
Technical Specifications
- Product Type: Junction box for dome cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Black
- Junction Box Diameter: 137 mm
- Junction Box Height: 42 mm
- Maximum Load Capacity: 4.5 kg
- Cable Entry: Side and bottom outlets
- Mounting Pattern: 7 x M4 fixing points
- Outdoor Use: Waterproof rubber required for outdoor applications
- Dimensions (H x L x W): 42mm x 137mm x 137mm
- Weight: 0.28 kg
Key Features
- Provides a secure mounting and cable-management base for compatible Hikvision dome cameras
- Aluminium alloy construction with protective surface treatment
- Side and bottom cable outlets for flexible installation
- Interchangeable bottom waterproof cover and side gland nut
- Waterproof design when correctly installed with the required sealing components
- Suitable for installation on flat surfaces
- Wall substrate should support at least three times the combined weight of the camera and mount
Applications
- CCTV dome camera installations
- Indoor security camera mounting
- Outdoor security camera installations with suitable waterproof sealing
- Commercial, industrial and residential surveillance systems
Standards & Compliance
- AS/NZS 62676.4:2020 — application guidelines for the selection, planning, installation, commissioning, maintenance and testing of video surveillance systems; applicable to the wider CCTV installation rather than a specific passive mounting accessory
Environmental Benefits
- Aluminium alloy is durable and widely recyclable at end of service life
- Robust construction can extend the service life of the camera mounting system and reduce replacement waste
- Water-resistant design can help reduce moisture-related equipment failures when correctly installed
Warranty Information
Warranty is subject to Hikvision Australia terms and authorised-channel purchase. Hikvision's published five-year premium warranty programme does not list this junction mounting accessory; confirm the applicable accessory warranty with the authorised distributor.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
