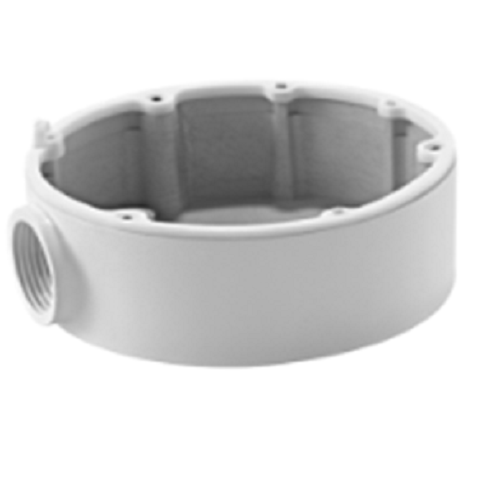

Junction Mounting Base DS-1280ZJ-DM26 Hikvision
Hikvision junction mounting base, model DS-1280ZJ-DM26. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1280ZJ-DM26 Junction Mounting Base, CCTV Junction Box, Dome Camera Mounting Box
Technical Specifications
- Product Type: Junction box for dome cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Maximum Load Capacity: 4.5 kg
- Mounting: Flat wall or ceiling surface
- Weather Protection: Waterproof design; waterproof rubber required for outdoor applications
- Cable Management: Integrated cable hole
- Compatibility: Hikvision DS-2CD45XXF(WD)-I(Z)(H)(S) and compatible outdoor dome cameras
- Dimensions (H x L x W): 65mm x 190mm x 165mm
- Weight: 0.466 kg
Key Features
- Provides a protected junction point for dome camera cable connections
- Aluminium alloy construction for mechanical strength and durability
- Waterproof design for suitable indoor and outdoor CCTV installations
- Integrated cable entry helps conceal and protect cabling
- Designed for installation on a flat wall or ceiling surface
- Supports camera and mounting loads up to 4.5 kg
Applications
- Outdoor dome camera installations
- Indoor CCTV camera installations
- Wall-mounted dome camera systems
- Ceiling-mounted dome camera systems
- Protecting and concealing camera cable connections
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable metal construction can extend product service life and reduce replacement waste
- Passive accessory requires no electrical power during operation
Warranty Information
Hikvision Australia’s RMA policy lists accessories with warranty terms subject to the applicable product category or sales agreement; consumable mounting accessories such as brackets are generally covered for 12 months. Confirm the applicable warranty with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
