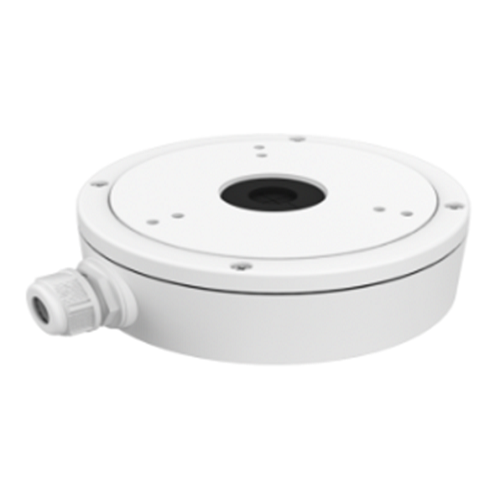

Junction Mounting Base DS-1280ZJ-M Hikvision
Hikvision junction mounting base features camera junction mounting. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1280ZJ-M Junction Box, Hikvision Camera Junction Mount, Hikvision Deep Junction Base
Technical Specifications
- Product Type: Camera junction box and mounting base
- Material: Aluminium alloy
- Finish: Hikvision white
- Installation Environment: Indoor or outdoor use
- Cable Management: Integrated cable outlet for concealed camera connections
- Mounting Thread: 4 x M6 mounting holes
- Fixing Holes: 4 x 4.5 mm holes
- Maximum Load: 4.5 kg
- Mounting Surface: Install on a flat, structurally sound surface
- Outdoor Installation: Waterproof rubber seal required for outdoor use
- Dimensions: Diameter 157 mm x height 53.4 mm
- Net Weight: Approximately 0.621 kg
- Dimensions (H x L x W): 53.4mm x 157mm x 157mm
- Weight: 0.621 kg
Key Features
- Provides a secure mounting interface for compatible Hikvision CCTV cameras
- Conceals and protects camera cable connections
- Die-cast aluminium alloy construction for strength and durability
- Suitable for indoor and outdoor camera installations when correctly sealed
- Hikvision white finish to match compatible camera housings
- Designed with cable outlets for cleaner installation routing
- Wall or mounting surface must support at least three times the combined camera and junction-box weight
Applications
- CCTV camera mounting
- Security camera cable management
- Indoor surveillance installations
- Outdoor surveillance installations with suitable sealing
- Commercial, industrial and residential security systems
Environmental Benefits
- Aluminium alloy is widely recyclable at end of service life
- Protecting camera cable connections can help extend the service life of the installed CCTV system
- Durable metal construction may reduce replacement frequency compared with less robust mounting accessories
Warranty Information
Warranty coverage should be confirmed with the authorised Australian distributor. Hikvision's published five-year warranty applies to selected premium project-oriented product series and does not list this mounting accessory. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/banner-/project-oriented-products/5-year-Warranty.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
