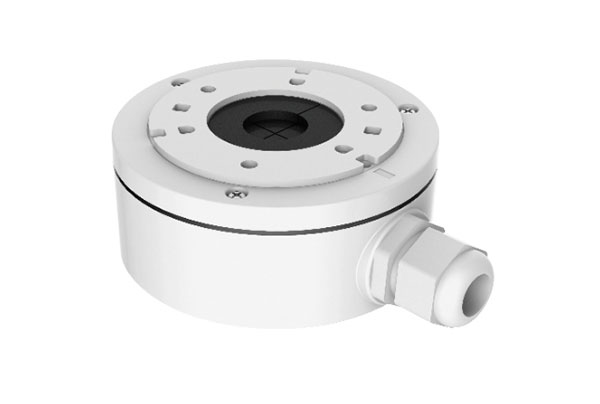

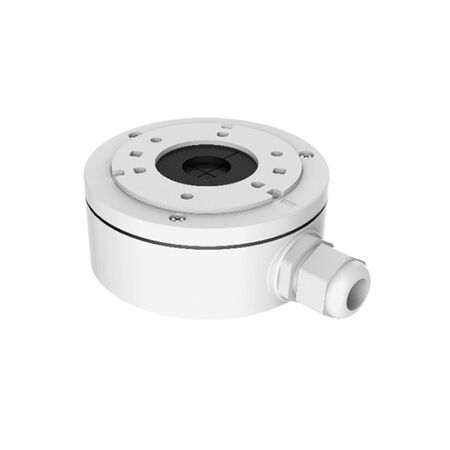

Junction Mounting Base DS-1280ZJ-XS to Suit Bullet Camera Hikvision
Hikvision junction mounting base to Suit bullet cameras. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1280ZJ-XS Junction Box, CCTV Junction Box, Bullet Camera Mounting Base, Camera Back Box
Technical Specifications
- Model: DS-1280ZJ-XS
- Product Type: Junction box for dome and bullet cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Maximum Load Capacity: 4.5 kg
- Installation Surface: Flat wall required
- Outdoor Use: Waterproof rubber required for outdoor applications
- Wall Load Requirement: Wall should support at least three times the combined camera and mount weight
- Dimensions (H x L x W): 43.2mm x 129mm x 100mm
- Weight: 0.32 kg
Key Features
- Designed for compatible Hikvision bullet and dome cameras
- Provides a concealed junction point for camera cabling
- Aluminium alloy construction for strength and durability
- Cable entry through the mounting base
- Suitable for indoor and outdoor CCTV installations when correctly sealed
- Maximum supported load of 4.5 kg
Applications
- Bullet camera wall mounting
- Dome camera wall mounting where compatibility is confirmed
- Indoor CCTV installations
- Outdoor CCTV installations with suitable waterproof sealing
- Commercial, industrial and residential security camera systems
Standards & Compliance
- AS/NZS 62676.4:2020 may apply to the selection, planning, installation, commissioning, maintenance and testing of the associated CCTV system; no product-specific standards certification is stated by Hikvision.
Environmental Benefits
- Aluminium alloy is recyclable at end of service life
- Durable metal construction can support extended product service life and reduce replacement waste
- Enables organised cable routing and protected camera connections, helping maintain the service life of the associated CCTV installation
Warranty Information
Warranty coverage should be confirmed with the authorised Australian distributor. Hikvision Australia states that local warranty and RMA support is provided through authorised distribution partners; no product-specific warranty period was identified for this mounting accessory.
Available Now
Available through Hikvision and authorised Australian CCTV and security equipment distributors.
