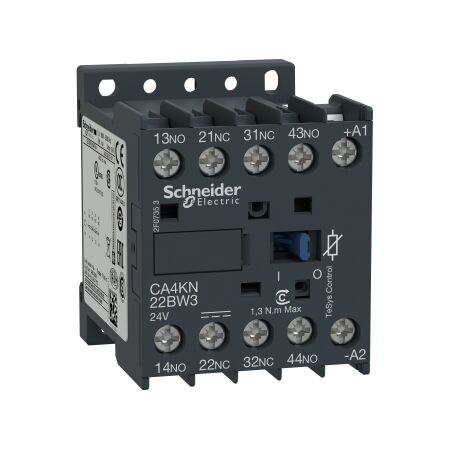

K Control Relay 2No 2NC 24V AC | 24V Coil Voltage | DIN Rail Mountable | High Electrical Endurance | @Quantity of 1 | by Clipsal
The K Control Relay 2No 2NC 24V AC is designed for reliable control in industrial automation and machinery applications. Featuring a 24V AC coil voltage and a compact DIN rail mountable design, this relay ensures high electrical endurance with a mechanical status indicator. Perfect for control circuits and building management systems, it offers efficient load management and long operational life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: K Control Relay 2No 2NC 24V AC | 24V Coil Voltage | DIN Rail Mountable | High Electrical Endurance | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCA4KN22BW3
Alternatively Known As: Clipsal control relay, 2NO 2NC relay, 24V AC relay, industrial relay, SCHCA4KN22BW3 relay
Technical Specifications
- Contact configuration: 2NO + 2NC
- Coil voltage: 24V AC
- Mounting: DIN rail
- Contact current rating: 10A
- Electrical endurance: 10⁶ operations
- Operating temperature: -20°C to +60°C
- Status indicator: Mechanical flag
- Dimensions (H x L x W): 78mm x 80mm x 22.5mm
- Weight: 0.15 kg
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
- 24V AC coil voltage
- Compact DIN rail mountable design
- High electrical endurance for reliable switching
- Clear status indication window
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Control circuits in machinery
- Switchboards and distribution boards
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal K Control Relay 2NO 2NC 24V AC (SCHCA4KN22BW3) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
