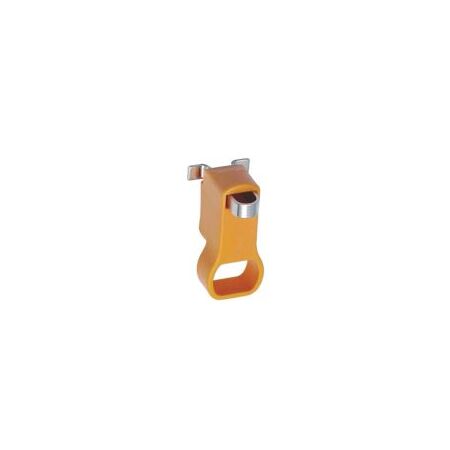

Key Lock to Suit NM8N 125A MCCB Chint
Chint key lock accessory to suit NM8N 125A frame MCCB. Ideal for locking the breaker in the off position for isolation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT NM8N-125 MCCB Key Lock, MCCB Handle Lock, MCCB Locking System
Technical Specifications
- Accessory Type: Locking system for MCCB operating handle
- Compatible Breaker: CHINT NM8N-125 frame MCCB
- Accessory Model: KLK21-M8
- CHINT Product Code: 269676
- Function: Locks the circuit breaker in the OFF position
- Packaging Unit: 1 each
- Dimensions (H x L x W): 50mm x 35mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed specifically for CHINT NM8N-125 frame MCCBs
- Prevents unintended operation of the breaker during isolation and maintenance
- Provides a visible mechanical locking point for safety procedures
- Compact accessory fitted to the MCCB operating mechanism
- Suitable for use in commercial, industrial and infrastructure switchboards
Professional Installation Requirements
- Installation should be carried out by a licensed electrician with the switchboard isolated and proved de-energised. Fit and use the accessory in accordance with CHINT installation instructions and the site's lockout/tagout procedures.
Applications
- Locking NM8N-125 MCCBs in the OFF position
- Electrical isolation and lockout/tagout procedures
- Commercial and industrial switchboards
- Maintenance and service access control
- Preventing unauthorised or accidental circuit energisation
Standards & Compliance
- Applicable to installations incorporating MCCBs designed to IEC/AS/NZS 60947-2; the locking accessory does not independently establish compliance of the complete circuit breaker or switchboard assembly.
Environmental Benefits
- Supports safe maintenance and isolation, helping reduce the risk of equipment damage caused by unintended energisation
- Reusable mechanical accessory that can extend the functional service life of the associated MCCB
- Small accessory format helps minimise material use and replacement waste
Warranty Information
CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when products are sold through authorised channels; contract and local Australian warranty terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
