Trade Discount 20%

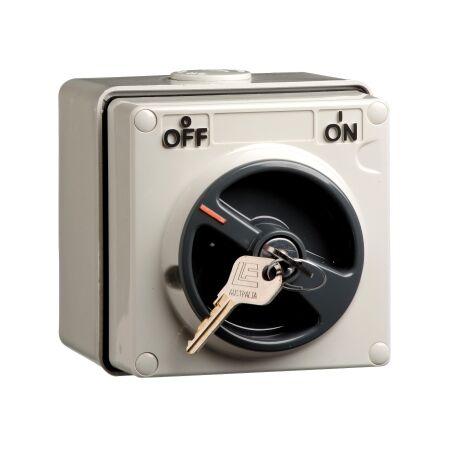

Key Operated Surface Switch IP66 250V 32A Clipsal
Key operated surface switch with IP66 rating and 250V 32A capacity—ideal for utility and small commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 32 A
- Control type: rotary knob
- Number of poles: 1
- Material: Polycarbonate
- Breaking capacity: 32 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 112mm x 101mm
- Weight: 0.54 kg
Key Features
- IP66 rated for protection against dust and water.
- Key operated for enhanced security.
- Designed for surface mounting.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Utility industry
- Small commercial
Standards & Compliance
- Complies with AS 60529 for IP66 rating.
Environmental Benefits
- Compliant with AS/NZS 3133 and RoHS directives.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Key Operated Surface Switch is available now for immediate purchase. Ideal for utility and small commercial applications.
