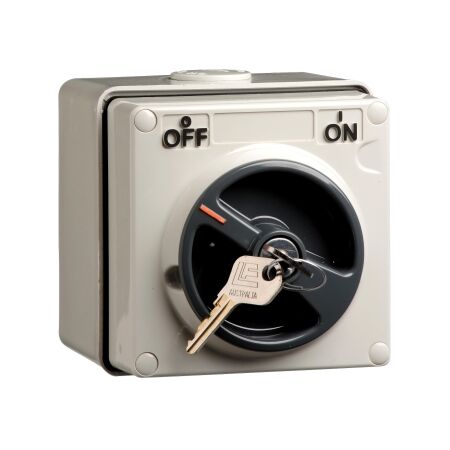

Key Operated Surface Switch IP66 500V 20A Clipsal

BRAND: Clipsal
SKU: CLI56K1SW320GY
$306.30 List price: $381.70
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Key Operated Surface Switch features 500V AC 50Hz, 20A rated current and Rotary knob. IP66 rated for protection against dust and water.
Technical Specifications
  • Rated operational voltage: 500V AC 50Hz
  • Rated current: 20A
  • Control type: Rotary knob
  • Number of poles: 3
  • Material: Polycarbonate
  • Ambient temperature range: -25 to 75 °C
  • Breaking capacity: 20 kA
  • Rated impulse withstand voltage: 4 kV
  • Dimensions (H x L x W): 107mm x 112mm x 101mm
  • Weight: 0.62 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Key operated for secure control.
  • 3-pole switch for versatile applications.
  • Rated operational voltage of 500V AC and current of 20A.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Control applications in small commercial and utility sectors.
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Key Operated Surface Switch is available now for immediate purchase. Ideal for industrial control applications.

56K1SW320-GY (56K1SW320-GY, 257 Kb) [Download]
