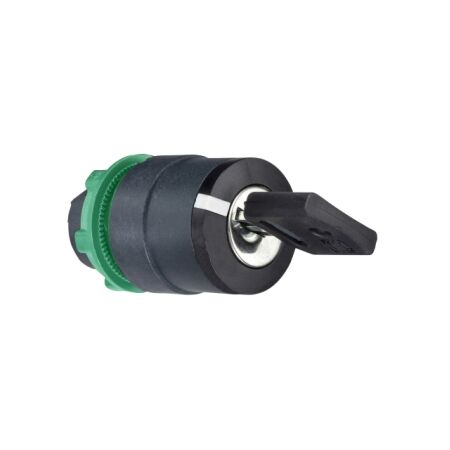

Key Switch Selector Head 3-Position | 22mm | IP69K Rated | Spring Return by Clipsal
Key switch selector head with 3 positions and spring return to center—ideal for industrial control panels. Built for durability with IP69K rating and 1,000,000 cycle mechanical endurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Head for key selector switch
- Mounting diameter: 22 mm
- Operator profile: Black key switch
- Key withdrawal position: Center
- Overvoltage category: Class II conforming to IEC 60536
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Dimensions (H x L x W): 29mm x 72mm x 29mm
- Weight: 0.1 kg
Key Features
- 3-position key switch with spring return to center.
- IP66, IP67, IP69, and IP69K rated for protection against dust and water.
- Mechanical durability of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment
Standards & Compliance
- Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Key Switch Selector Head is available now for immediate purchase. Ideal for industrial control applications.
