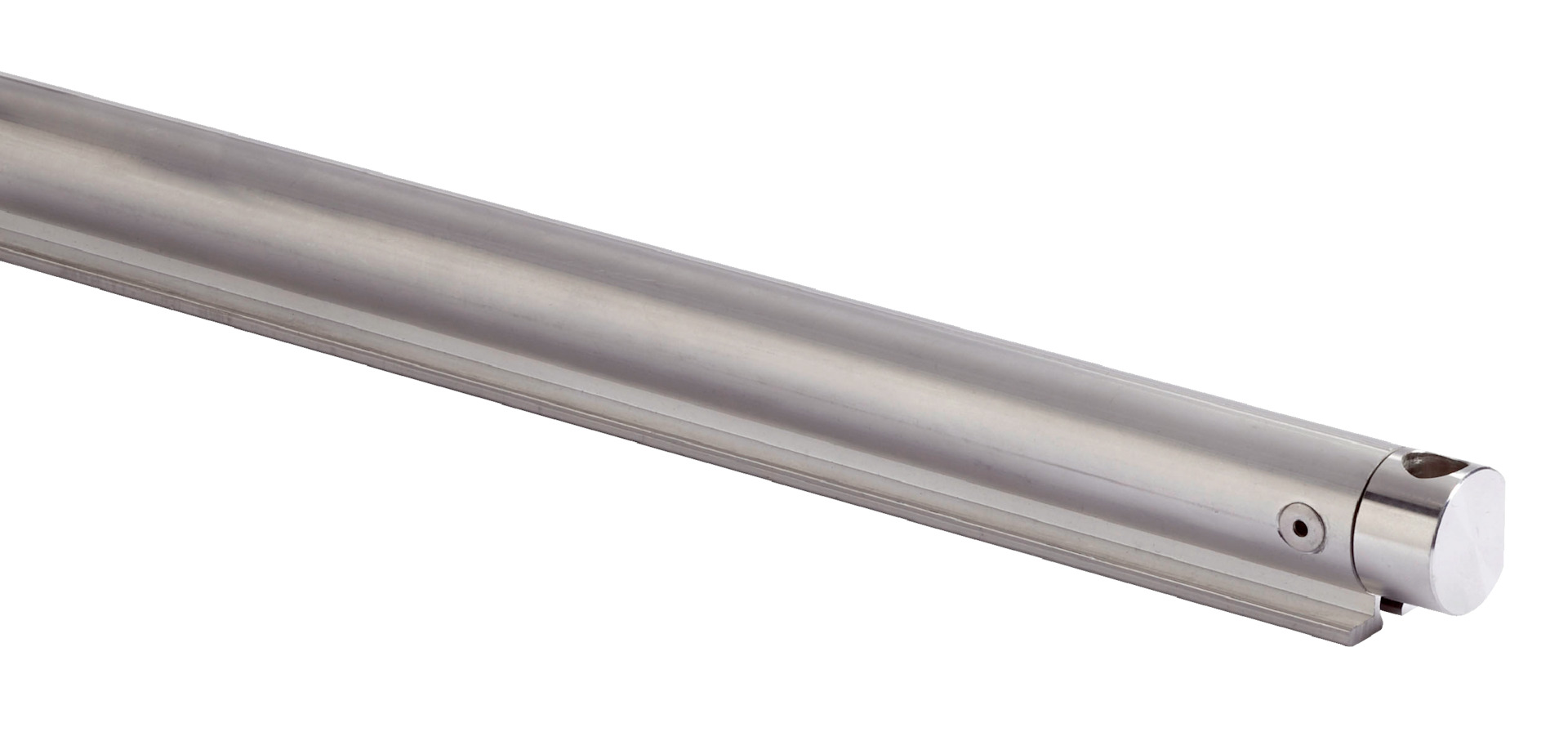

KHU53 Measuring Element | 0 to 1700 m Range | Universal Configurable Code | High Shock & Vibration Resistance | by SICK
The KHU53 Measuring Element is designed for industrial measurement and automation, offering a remarkable measuring range of 0 to 1700 meters. With a universal configurable code type, it ensures flexible integration into various systems. Built from durable AlMgSi0,5F22 material, this measuring element withstands high shocks and vibrations, making it ideal for process control and logistics automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

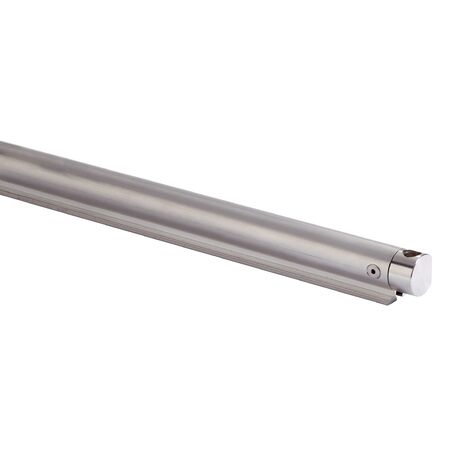

Product Name/Title: KHU53 Measuring Element | 0 to 1700 m Range | Universal Configurable Code | High Shock & Vibration Resistance | by SICK
Brand: SICK
SKU: 1030086
Alternatively Known As: SICK Measuring Element, KHU53 Measuring Tape, Long Range Measuring Element
Technical Specifications
- Measuring range: 0 m to 1700 m
- Code type: Universal configurable
- Weight: approximately 0.5 kg per meter
- Length of measuring element: 1.9072 m including distance
- Material: AlMgSi0,5F22
- Shock resistance: 50 g, 10 ms (DIN EN 61000-2-27)
- Vibration resistance: 30 g, 20 Hz to 250 Hz (DIN EN 61000-2-6)
- Dimensions (H x L x W): 50mm x 1907mm x 50mm
- Weight: 0.5 kg
Key Features
- Universal configurable code type for flexible integration
- Measuring range up to 1700 meters
- High resistance to shocks (50 g, 10 ms) and vibration (30 g, 20 Hz to 250 Hz)
- Measuring elements made from durable AlMgSi0,5F22 material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial measurement systems to ensure accuracy and safety.
Applications
- Industrial measurement and automation requiring long-range distance measurement
- Process control systems
- Material handling and logistics automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Designed for efficient industrial measurement, supporting optimized resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KHU53-XXX01700 Measuring Element is available for immediate purchase, ideal for industrial and automation applications requiring precise long-range measurement.
