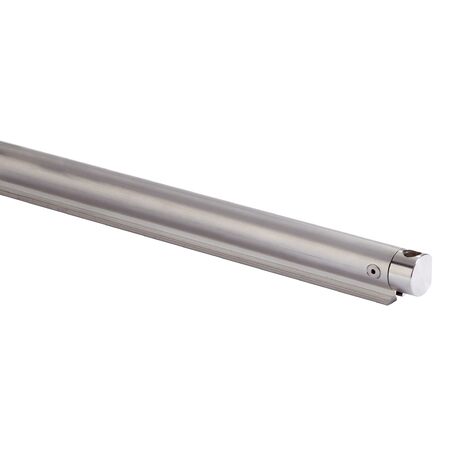

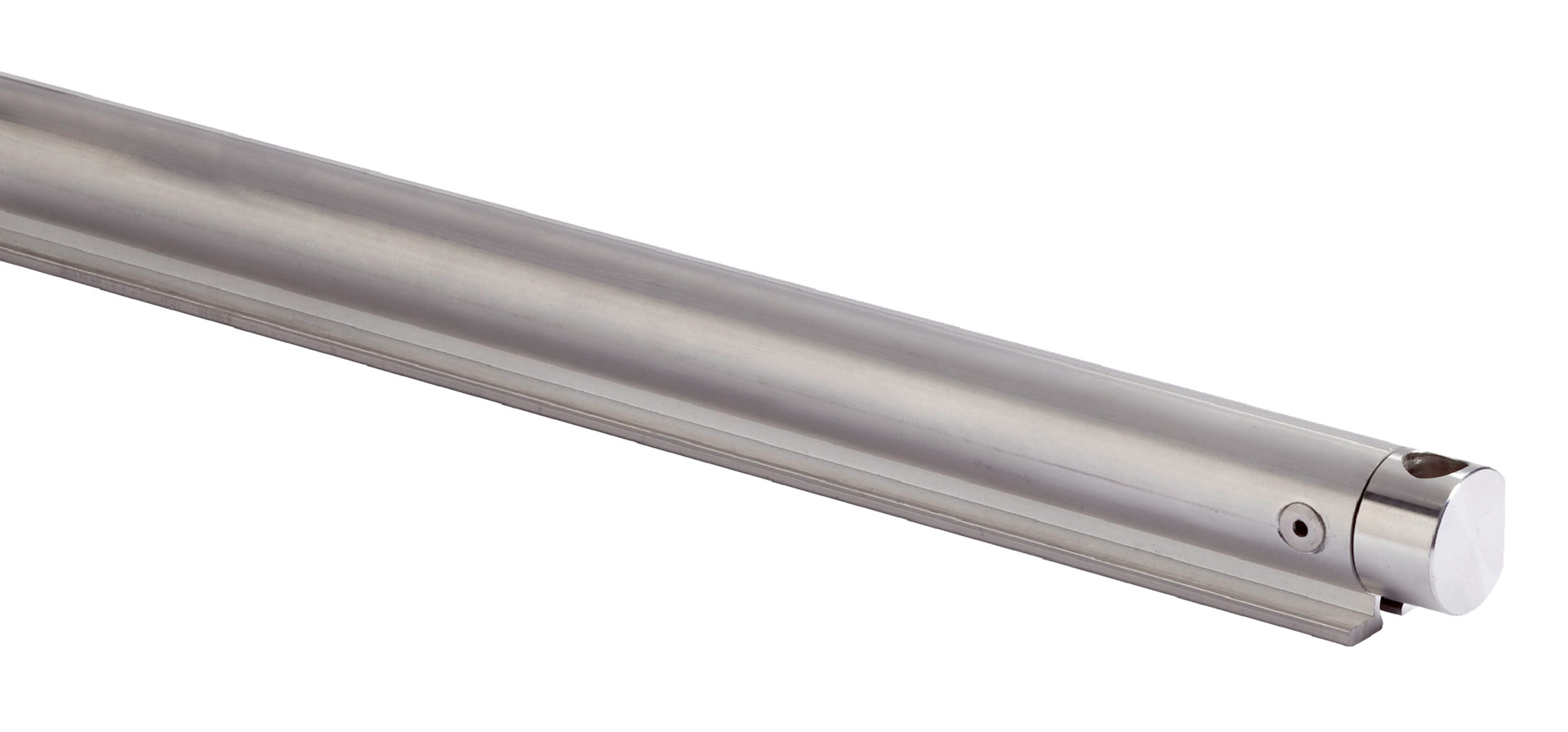

KHU53 Measuring Element | 0 to 548 m Range | Shock & Vibration Resistant | by SICK
The KHU53 Measuring Element is designed for industrial measurement applications, offering a measuring range of 0 to 548 meters. With a universal configurable code type and high resistance to shocks and vibrations, it's perfect for automation and control systems. Built from durable AlMgSi0,5F22 material, this measuring element ensures reliability and precision in material handling and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: KHU53 Measuring Element | 0 to 548 m Range | Shock & Vibration Resistant | by SICK
Brand: SICK
SKU: 1035452
Alternatively Known As: SICK Measuring Element KHU53, KHU53 Measuring Tape, Industrial Distance Measuring Element
Technical Specifications
- Measuring range: 0 m to 548 m
- Code type: Universal configurable
- Weight: approximately 0.65 kg per meter
- Length of measuring element: 2.3552 m including distance
- Material: AlMgSi0,5F22
- Shock resistance: 50 g, 10 ms (DIN EN 61000-2-27)
- Vibration resistance: 30 g, 20 Hz to 250 Hz (DIN EN 61000-2-6)
- Dimensions (H x L x W): 50mm x 2355mm x 50mm
- Weight: 1.53 kg
Key Features
- Universal configurable code type for flexible integration
- High resistance to shocks (50 g, 10 ms) and vibration (30 g, 20 Hz to 250 Hz)
- Measuring range up to 548 meters
- Measuring elements made from durable AlMgSi0,5F22 material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial measurement systems to ensure accurate setup and compliance with safety standards.
Applications
- Industrial measurement applications requiring precise distance measurement up to 548 meters
- Automation and control systems
- Material handling and logistics measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KHU53-XXX00548 Measuring Element is available for immediate purchase, ideal for industrial measurement and automation applications.
