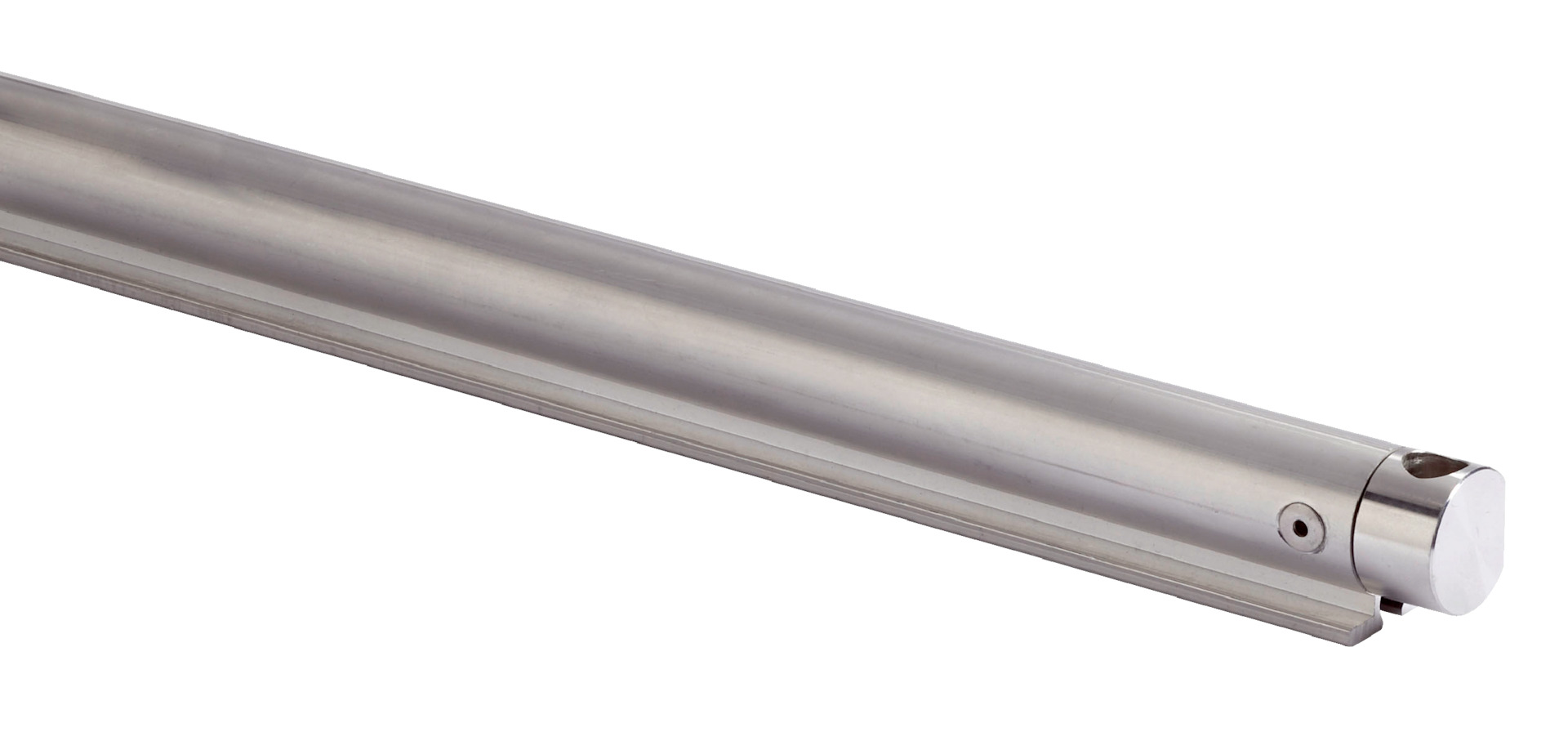

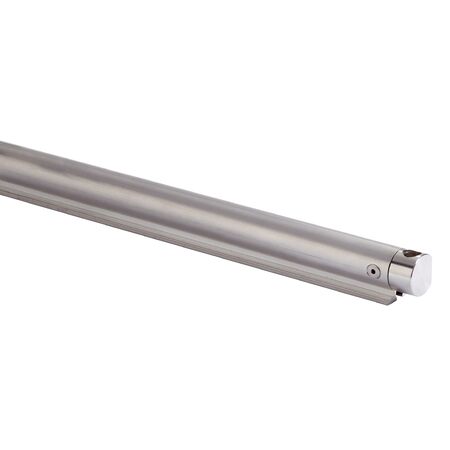

KHU53 Measuring Element | Universal Configurable Code Type | 354m Measuring Range | High Shock & Vibration Resistance | by SICK
The KHU53 Measuring Element is designed for industrial measurement applications, offering a remarkable measuring range of up to 354 meters. With a universal configurable code type, it integrates seamlessly into automation and process control systems. Built from durable AlMgSi0,5F22 material, it withstands high shocks and vibrations, making it ideal for material handling and logistics measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: KHU53 Measuring Element | Universal Configurable Code Type | 354m Measuring Range | High Shock & Vibration Resistance | by SICK
Brand: SICK
SKU: 1030076
Alternatively Known As: SICK Measuring Element, KHU53 Measuring Tape, Long Range Measuring Element
Technical Specifications
- Measuring range: 0 m to 354 m
- Code type: Universal configurable
- Weight: Approximately 0.5 kg per meter
- Length of measuring element: 2.5088 m
- Material: AlMgSi0,5F22
- Shock resistance: 50 g, 10 ms (DIN EN 61000-2-27)
- Vibration resistance: 30 g, 20 Hz to 250 Hz (DIN EN 61000-2-6)
- China-RoHS compliant
- Dimensions (H x L x W): 50mm x 2509mm x 50mm
- Weight: 1.25 kg
Key Features
- Universal configurable code type for flexible integration
- Measuring range up to 354 meters
- High resistance to shocks (50 g, 10 ms) and vibration (30 g, 20 Hz to 250 Hz)
- Measuring elements made from durable AlMgSi0,5F22 material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial measurement equipment to ensure accurate setup and compliance with safety standards.
Applications
- Industrial measurement applications requiring long-range distance measurement
- Automation and process control systems
- Material handling and logistics measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Designed for efficient and precise measurement, supporting energy-saving automation processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KHU53-XXX00354 Measuring Element is available for immediate purchase, ideal for industrial and automation measurement applications.
