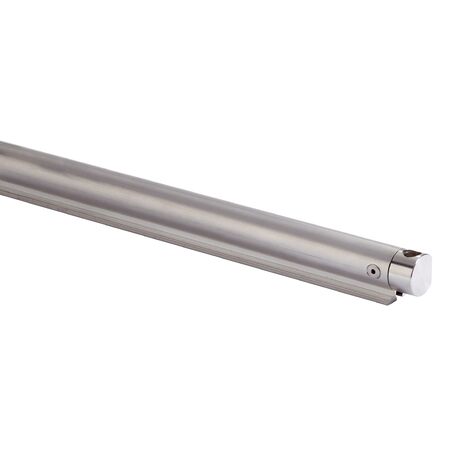

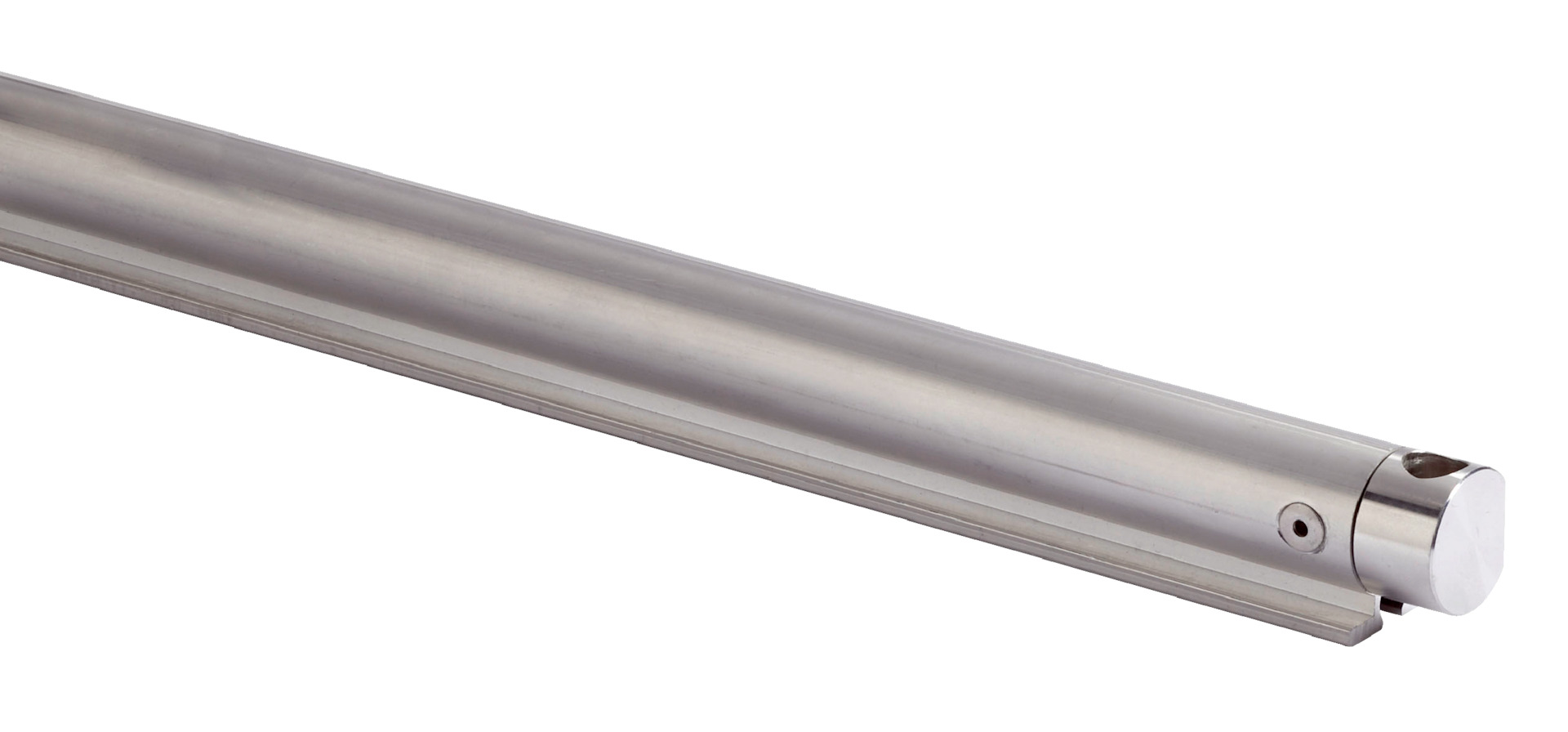

KHU53-XXX00038 Measuring Element | 0 to 38 m Range | Shock & Vibration Resistant | by SICK
The KHU53-XXX00038 Measuring Element is designed for industrial measurement and automation systems, offering a measuring range of 0 to 38 meters. With high resistance to shocks and vibrations, this durable element is perfect for precise distance and position sensing in manufacturing environments, ensuring reliable integration into control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: KHU53-XXX00038 Measuring Element | 0 to 38 m Range | Shock & Vibration Resistant | by SICK
Brand: SICK
SKU: 1030056
Alternatively Known As: Measuring Element, Distance Sensor Element, SICK Measuring Tape, Industrial Measuring Element
Technical Specifications
- Measuring range: 0 m to 38 m
- Weight: approximately 0.5 kg per meter
- Length of measuring element: 2.304 m
- Material: AlMgSi0,5F22
- Code type: Universal configurable
- Shock resistance: 50 g, 10 ms (DIN EN 61000-2-27)
- Vibration resistance: 30 g, 20 Hz to 250 Hz (DIN EN 61000-2-6)
- Dimensions (H x L x W): 30mm x 2304mm x 30mm
- Weight: 1.15 kg
Key Features
- Universal configurable code type for flexible integration
- Measuring range up to 38 meters
- High resistance to shocks (50 g, 10 ms) and vibration (30 g, 20 Hz to 250 Hz)
- Material: AlMgSi0,5F22 for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial measurement systems to ensure accurate setup and compliance with safety standards.
Applications
- Industrial measurement and automation systems
- Distance and position sensing in manufacturing
- Integration in control systems requiring precise range measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KHU53-XXX00038 Measuring Element is available for immediate purchase, ideal for industrial and automation applications requiring precise distance measurement.
