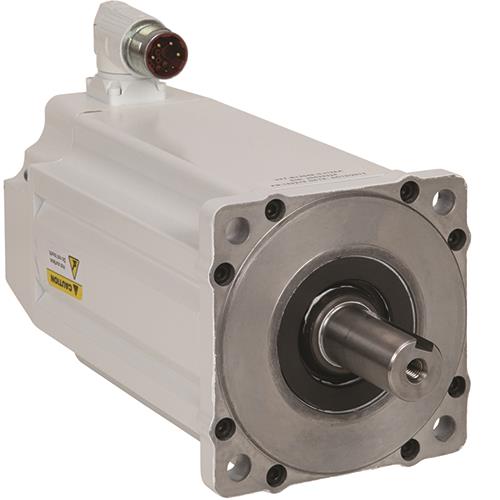

Product Name/Title: Allen-Bradley VPFB1304ECJ14AF Kinetix Food Grade Servo Motor
Brand: Allen-Bradley
SKU: VPFB1304ECJ14AF
Alternatively Known As: Kinetix Food Grade Servo Motor, Allen-Bradley Servo Motor 130mm, VPFB1304ECJ14AF Servo Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 130 mm
- Magnet Stack: 4
- Maximum Speed: 3500 RPM
- Encoder: 18-bit absolute single-turn digital encoder (HIPERFACE DSL protocol)
- Connector: Single SpeedTec DIN
- Brake: 24V DC holding brake
- Mounting: IEC metric with free mounting holes
- Shaft: Keyed shaft
- Dimensions (H x L x W): 130mm x 200mm x 130mm
- Weight: 5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operation voltage
- 130 mm frame size with 4 magnet stack
- 3500 RPM maximum speed
- 18-bit absolute single-turn digital encoder with HIPERFACE DSL protocol
- Shaft key for secure coupling
- Single SpeedTec DIN connector
- 24V DC holding brake
- IEC metric mounting with free mounting holes
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical and safety standards.
Applications
- Food and beverage processing machinery
- Pharmaceutical manufacturing equipment
- Packaging machines requiring hygienic motor solutions
- Industrial automation systems with food grade requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure reduces contamination risk, supporting safer and more sustainable food production processes
- High efficiency motor design reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB1304ECJ14AF Kinetix Food Grade Servo Motor is available for immediate purchase, ideal for hygienic industrial automation applications.
