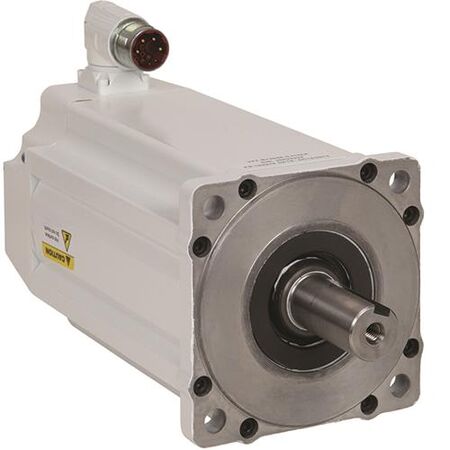

Kinetix Food Grade Servo Motor | 400V | 3500 RPM Max Speed | 130mm Frame Size | by Allen-Bradley
The Kinetix Food Grade Servo Motor is designed for hygienic environments, operating at 400V with a maximum speed of 3500 RPM. Ideal for food and beverage processing, pharmaceutical manufacturing, and packaging machines, this motor features a 130mm frame size and an 18-bit absolute single-turn digital encoder for precise control. Its food grade enclosure minimizes contamination risk, making it perfect for industrial automation systems requiring high standards of cleanliness.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 400V
- Frame Size: 130 mm
- Magnet Stack: 4
- Maximum Speed: 3500 RPM
- Encoder: 18-bit absolute single-turn digital encoder (HIPERFACE DSL protocol)
- Connector: Single SpeedTec DIN
- Brake: 24V DC holding brake
- Mounting: IEC metric with free mounting holes
- Shaft: Keyed shaft
- Dimensions (H x L x W): 130mm x 200mm x 130mm
- Weight: 5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operation voltage
- 130 mm frame size with 4 magnet stack
- 3500 RPM maximum speed
- 18-bit absolute single-turn digital encoder with HIPERFACE DSL protocol
- Shaft key for secure coupling
- Single SpeedTec DIN connector
- 24V DC holding brake
- IEC metric mounting with free mounting holes
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical and safety standards.
Applications
- Food and beverage processing machinery
- Pharmaceutical manufacturing equipment
- Packaging machines requiring hygienic motor solutions
- Industrial automation systems with food grade requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure reduces contamination risk, supporting safer and more sustainable food production processes
- High efficiency motor design reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB1304ECJ14AF Kinetix Food Grade Servo Motor is available for immediate purchase, ideal for hygienic industrial automation applications.
