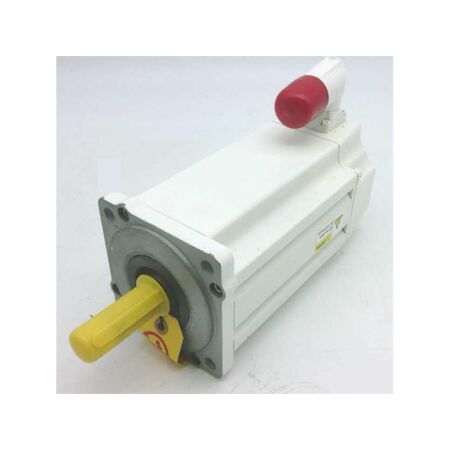

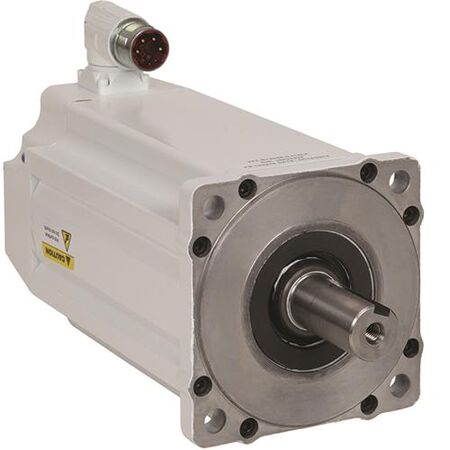

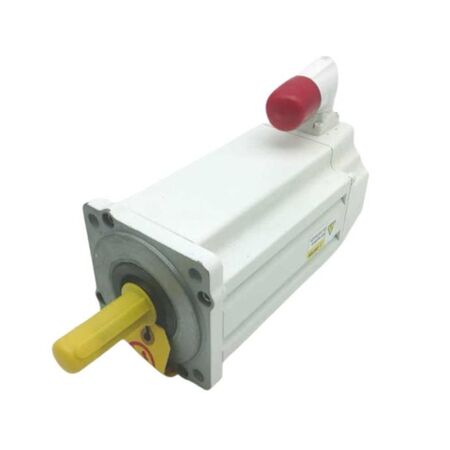

Kinetix Food Grade Servo Motor | 400V | 4500 RPM Speed | 100 mm Frame Size | by Allen-Bradley
The Kinetix Food Grade Servo Motor is designed for hygienic environments, operating at 400V with a maximum speed of 4500 RPM. Ideal for food processing machinery and industrial automation, this motor features a 100 mm frame size and an 18-bit absolute multi-turn digital encoder for precise motion control. Its food-grade enclosure minimizes contamination risks, making it perfect for the food and beverage industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 400V
- Frame Size: 100 mm
- Magnet Stack: 3
- Maximum Speed: 4500 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Connector: Single SpeedTec DIN
- Mounting: IEC metric with free mounting holes (Type FF)
- Brake: None
- Shaft: Keyed
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operating voltage
- 100 mm frame size
- 3 magnet stack design
- 4500 RPM maximum speed
- 18-bit absolute multi-turn digital encoder (HIPERFACE DSL encoder)
- Shaft key included
- Single SpeedTec DIN connector
- No brake included
- IEC metric mounting with free mounting holes (Type FF)
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical and safety standards.
Applications
- Food processing machinery requiring hygienic and food-safe components
- Industrial automation systems with precise motion control
- Packaging equipment in food and beverage industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure reduces contamination risk, supporting safer food production processes
- High efficiency motor design reduces energy consumption in industrial applications
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB1003FPJ12AF Kinetix Food Grade Servo Motor is available for immediate purchase, ideal for food processing and industrial automation applications.
