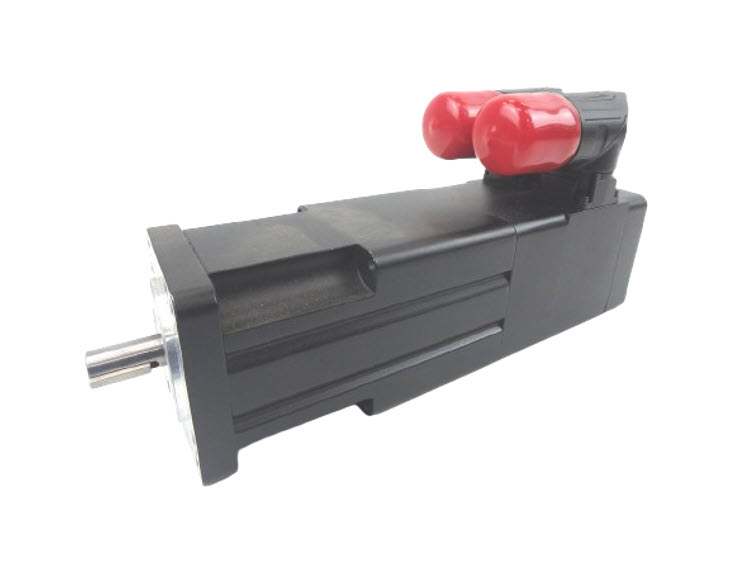

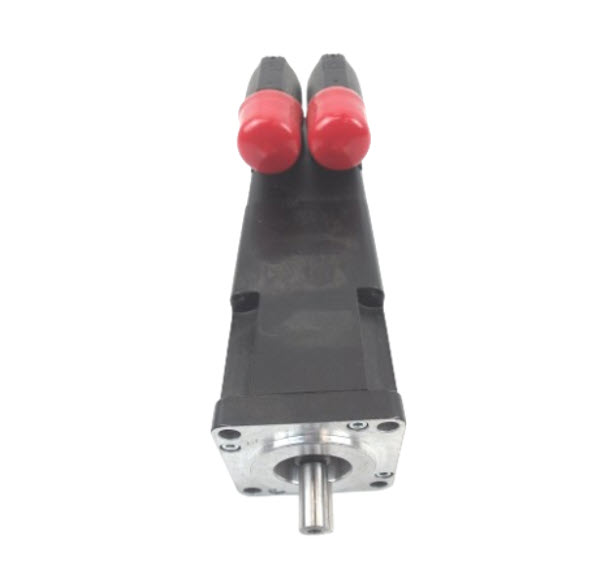

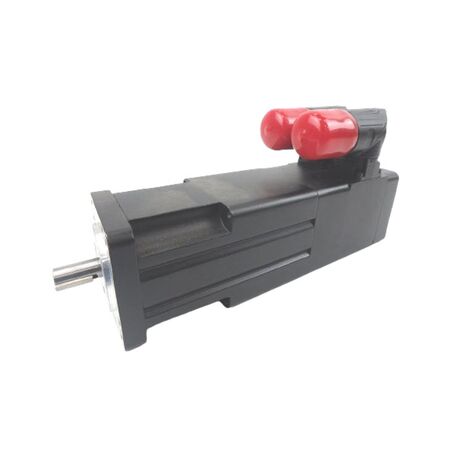

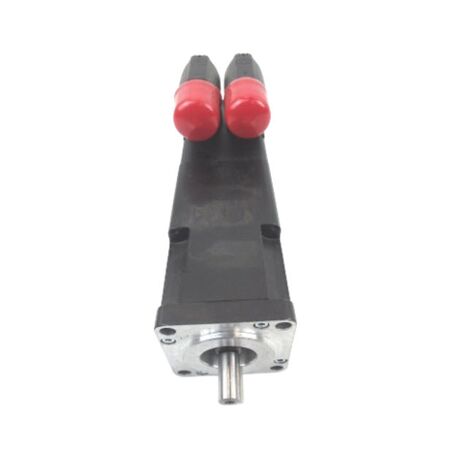

Product Name/Title: Allen-Bradley MPLA1530UVJ74AA Kinetix Low Inertia Servo Motor
Brand: Allen-Bradley
SKU: MPLA1530UVJ74AA
Alternatively Known As: Allen-Bradley Servo Motor MPLA1530UVJ74AA, Kinetix Servo Motor, Low Inertia Servo Motor 200V
Technical Specifications
- Voltage: 200V
- Frame Size: 63 mm
- Magnet Stack Length: 76.2 mm
- Maximum Speed: 7000 RPM
- Encoder Type: Absolute multi-turn HIPERFACE encoder
- Encoder Resolution: 128 SIN/COS
- Connector: Circular (Speedtec) DIN connector
- Brake: 24V DC holding brake
- Shaft: Keyed shaft, no shaft seal
- Dimensions (H x L x W): 63mm x 140mm x 63mm
- Weight: 1.5 kg
Key Features
- Low inertia design for fast acceleration and deceleration
- 200V operating voltage
- 63 mm frame size
- 76.2 mm magnet stack length
- 7000 RPM maximum speed
- 128 SIN/COS encoder resolution
- Absolute multi-turn HIPERFACE encoder
- Shaft key included
- Circular (Speedtec) DIN connector
- 24V DC holding brake
Professional Installation Requirements
- Installation by a qualified technician or electrician is required to ensure proper integration and safety compliance.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing machinery requiring servo motor control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor design reduces power consumption during operation
- Durable construction extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley MPLA1530UVJ74AA Kinetix Low Inertia Servo Motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
