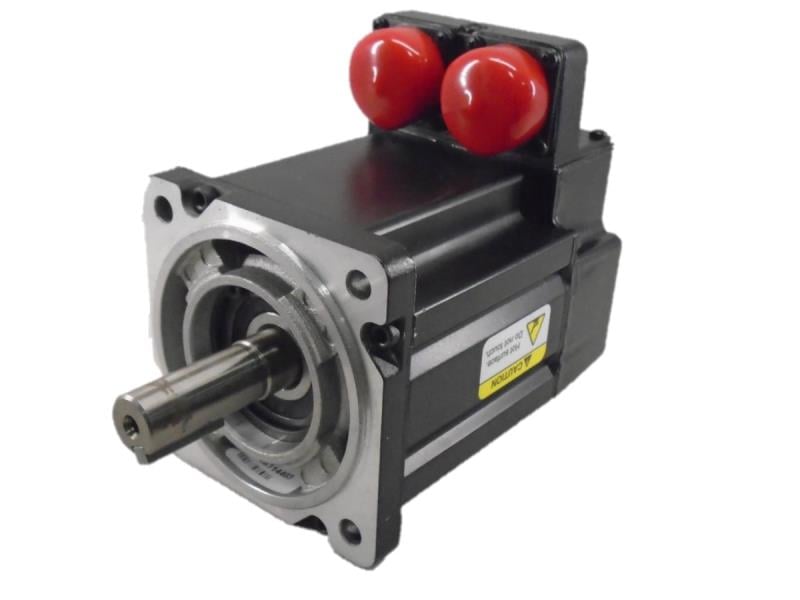

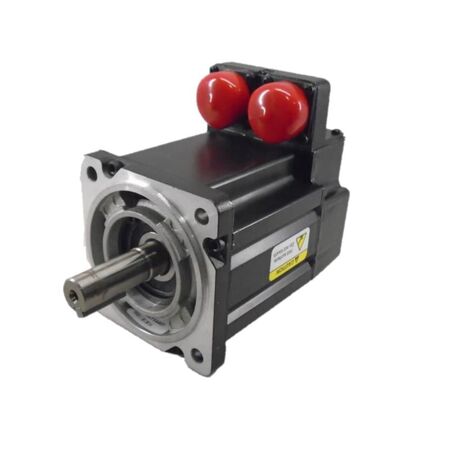

Product Name/Title: Allen-Bradley MPLB4530KSJ74AA Kinetix Low Inertia Servo Motor 400V
Brand: Allen-Bradley
SKU: MPLB4530KSJ74AA
Alternatively Known As: Allen-Bradley Servo Motor, Kinetix Servo Motor, MPLB4530KSJ74AA Motor, Low Inertia Servo Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 130 mm
- Magnet Stack Length: 76.2 mm
- Maximum Speed: 4000 RPM
- Encoder Type: Absolute single-turn encoder (HIPERFACE protocol)
- Encoder Resolution: 1024 SIN/COS
- Connector: Circular (Speedtec) DIN connector
- Brake: 24V DC holding brake
- Shaft: Keyed shaft, no shaft seal
- Dimensions (H x L x W): 130mm x 200mm x 130mm
- Weight: 3.5 kg
Key Features
- Low inertia design for fast acceleration and deceleration
- 400V operating voltage
- 130 mm frame size
- 76.2 mm magnet stack length
- 4000 RPM maximum speed
- 1024 SIN/COS encoder resolution
- Absolute single-turn encoder with HIPERFACE protocol
- Shaft key included
- Circular (Speedtec) DIN connector
- 24V DC holding brake
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure proper integration and safety compliance.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing machinery requiring servo motor control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency motor reduces energy consumption in industrial processes
- Durable design minimizes waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley MPLB4530KSJ74AA Kinetix Low Inertia Servo Motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
