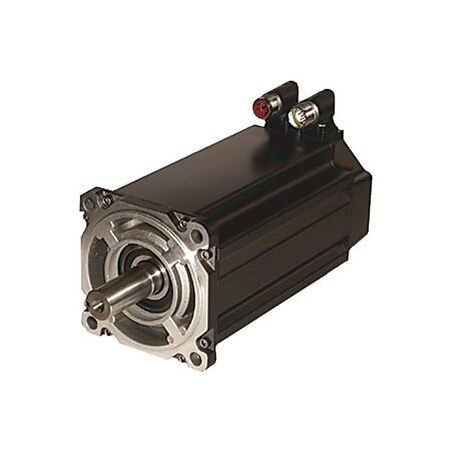

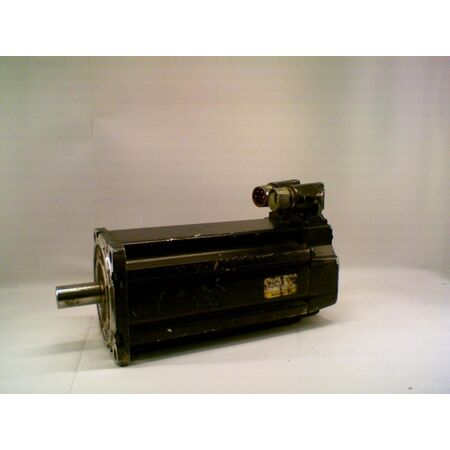

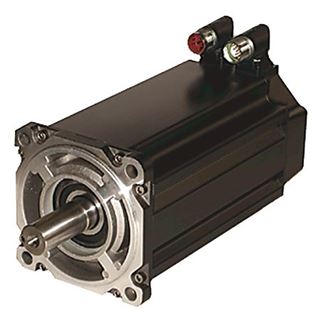

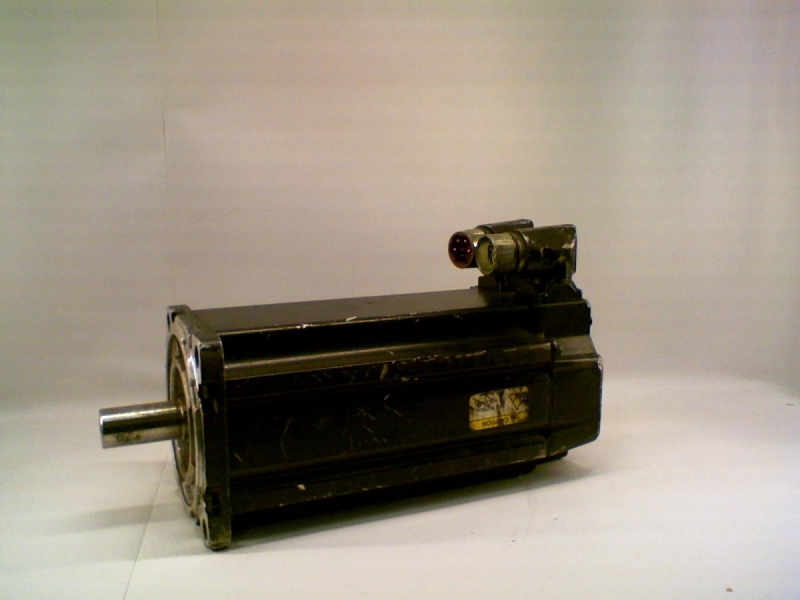

Product Name/Title: Allen-Bradley MPLB430PSK74AA Kinetix Low Inertia Servo Motor 400V
Brand: Allen-Bradley
SKU: MPLB430PSK74AA
Alternatively Known As: Kinetix Servo Motor, Low Inertia Servo Motor, MPLB430PSK74AA Servo Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 115 mm
- Magnet Stack Length: 76.2 mm
- Maximum Speed: 5000 RPM
- Encoder Type: Absolute single-turn encoder (HIPERFACE protocol)
- Encoder Resolution: 1024 SIN/COS
- Connector: Circular (Speedtec) DIN connector
- Brake: 24V DC holding brake
- Shaft: No shaft key, no shaft seal
- Dimensions (H x L x W): 115mm x 150mm x 115mm
- Weight: 3.5 kg
Key Features
- Low inertia design for fast acceleration and deceleration
- 400V operating voltage
- 115 mm frame size
- 76.2 mm magnet stack length
- Maximum speed of 5000 RPM
- 1024 SIN/COS encoder resolution
- Absolute single-turn encoder with HIPERFACE protocol
- No shaft key and no shaft seal for simplified maintenance
- Circular (Speedtec) DIN connector
- 24V DC holding brake
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure proper integration and safety compliance.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing machinery requiring high-speed servo motors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency motor design reduces energy consumption in industrial applications
- Durable construction minimizes waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley MPLB430PSK74AA Kinetix low inertia servo motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
