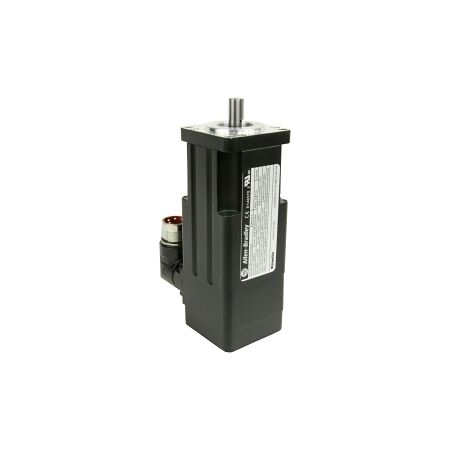

Kinetix MPL Servo Motor 230VAC 7000 RPM 0.49Nm Torque NHP
Kinetix MPL servo motor with 230VAC and 7000 RPM—ideal for industrial automation and robotics. Built for precision
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Class AC: 200 V
- Feedback Type: Multi-turn high resolution encoder
- Feedback Protocol: HiperFace DSL Protocol/SSI Protocol
- With Brake: No
- Magnet Stack Length: 50.8 mm
- Number of Magnets: 20
- Degree of Protection: IP50
- Rotational Speed: 7000 1/min
- Nominal Torque: 1.58 Nm
- Torque: 0.49 Nm
- Max Shock Acceleration: 20 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 2.5 m/s²
- Operating Temperature: 0-40 °C
- Allowable Relative Humidity: 5-95 %
- Ambient Temperature: -30-70 °C
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.1 kg
Key Features
- Multi-turn high resolution encoder for precise feedback.
- Compact design with a magnet stack length of 50.8 mm.
- IP50 rated for protection against dust and solid objects.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation systems
- Robotics and motion control
- CNC machinery
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient operation reduces energy consumption in industrial applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Kinetix MPL Servo Motor is available now for immediate purchase. Ideal for industrial automation and robotics applications.
Non-Returnable & Non-Cancellable
