Home/Electrical/Parts/Heating Elements/Kinetix MPL Servo Motor 460VAC | 5000 RPM | 2.10Nm Torque | 24VDC Brake by NHP

Trade Discount 25%

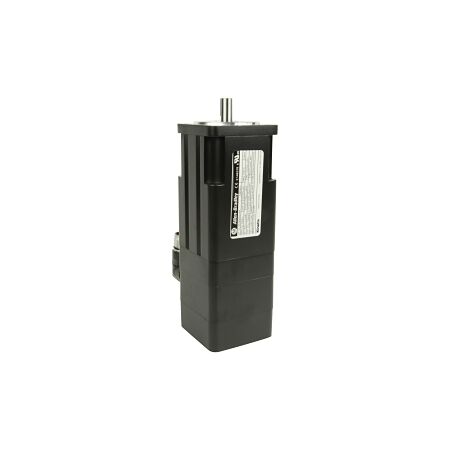

Allen-Bradley Kinetix MPL Servo Motor 460VAC 5000 RPM 2.10Nm Single Turn Encoder 24VDC Brake Keyed

Kinetix MPL Servo Motor 460VAC | 5000 RPM | 2.10Nm Torque | 24VDC Brake by NHP

BRAND: NHP

SKU: MPLB230PEJ74AA

$5,513.60 List price: $7,321.40

+ −

30 Days Return Delivery Options

Kinetix MPL servo motor with 460VAC and 5000 RPM—ideal for industrial automation and control systems. Built for precision, with 2.10Nm torque and integrated 24VDC brake for enhanced safety.

Description
Attachments

Product Name/Title: Allen-Bradley Kinetix MPL Servo Motor 460VAC 5000 RPM 2.10Nm Single Turn Encoder 24VDC Brake Keyed

Brand: NHP

SKU: MPLB230PEJ74AA

Alternatively Known As: MPL Servo Motor, Allen-Bradley Servo Motor, Kinetix Servo Motor

Technical Specifications

Voltage Class AC: 400 V
Feedback Type: Single-turn high resolution
With Brake: Yes
Magnet Stack Length: 76.2 mm
Magnet Stack Number of Magnets: 30
Rotational Speed: 5000 1/min
Nominal Torque: 8.2 Nm
Torque: 2.1 Nm
Max Shock Acceleration: 20 g
Max Vibration Frequency Operational: 2000 Hz
Max Vibration Acceleration: 2.5 m/s²
Operating Temperature: 0-40 °C
Allowable Relative Humidity: 5-95 %
Ambient Temperature: -30-70 °C
Dimensions (H x L x W): 100mm x 300mm x 100mm
Weight: 3 kg

Key Features

Single-turn high resolution feedback with HiperFace DSL Protocol/SSI Protocol.
IP50 degree of protection for dust and moisture resistance.
Integrated brake for enhanced safety and control.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation and control systems
Robotics and motion control
CNC machinery and equipment

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Efficient energy use contributes to reduced operational costs and lower environmental impact.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley Kinetix MPL Servo Motor is available now for immediate purchase, suitable for various industrial applications.

Non-Returnable & Non-Cancellable

MPLB230PEJ74AA-AU-MPL-Servo-Motor-Datasheet.pdf (MPLB230PEJ74AA-AU-MPL-Servo-Motor-Datasheet.pdf, 190 Kb) [Download]
