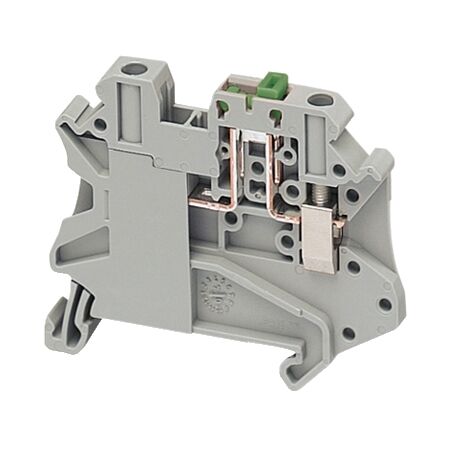

Knife Disconnect Terminal Block | 500V 20A | 4mm² Screw Terminal | Grey by Clipsal
Knife disconnect terminal block with 500V and 20A rating—ideal for industrial electrical enclosures. Built for safe disconnection, with 4mm² screw terminal connections and clip-on mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linergy, Screw Terminal, Knife Disconnect, 2 Points, 4mm², Grey
Brand: Clipsal
SKU: NSYTRV42SC
Alternatively Known As: Knife Disconnect Terminal Block, Screw Terminal Block, Linergy Terminal Block
Technical Specifications
- Rated operational voltage: 500 V
- Rated current: 20 A
- Nominal cross section: 4 mm²
- Mounting mode: clip-on
- Connections: 1 x screw terminal upstream, 1 x screw terminal downstream
- Wire stripping length: 9 mm
- Tightening torque: 0.6...0.8 N.m
- Dielectric strength: 1000 V
- Flame retardance: V0
- Ambient air temperature for operation: -40...130 °C
- Dimensions (H x L x W): 49mm x 58mm x 62mm
- Weight: 0.1 kg
Key Features
- Knife disconnect design for safe and easy disconnection.
- Screw terminal connections for reliable electrical contact.
- Compatible with Spacial enclosures.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in various electrical enclosures and installations.
Standards & Compliance
- Complies with EN/IEC 60947 for safety and performance standards.
Environmental Benefits
- Green Premium product with halogen-free plastic parts.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy Screw Terminal Knife Disconnect is available now for immediate purchase. Ideal for industrial applications requiring reliable electrical connections.
