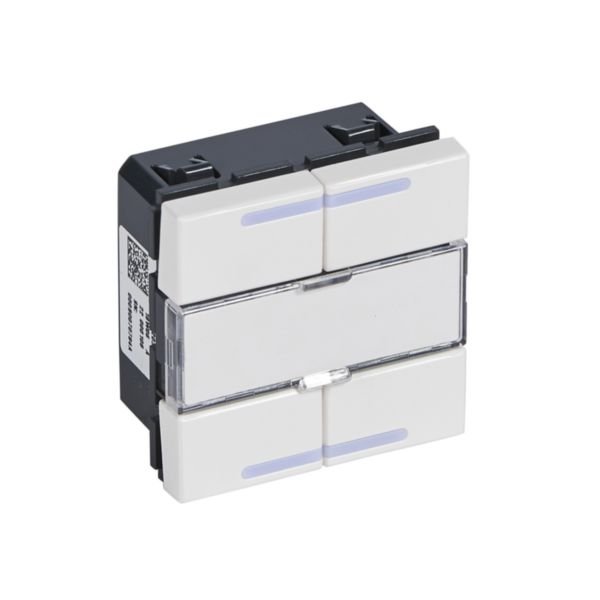

KNX Control Unit | 4 Buttons & 4 Action Points | Programmable RGB LEDs | Flush-Mounted | @EA of 1 | by Legrand
The KNX Control Unit features 4 buttons and 4 action points, making it perfect for smart home automation and building control. With programmable RGB LEDs offering 12 colors, it provides clear load and system status feedback. Designed for flush-mounted installation, this unit is ideal for lighting, HVAC, and scenario management in both residential and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: KNX Control Unit | 4 Buttons & 4 Action Points | Programmable RGB LEDs | Flush-Mounted | @EA of 1 | by Legrand
Brand: Legrand
SKU: 574203
Alternatively Known As: KNX Control Panel, KNX Switch Unit, Smart Home Control Unit, Arteor KNX Button Panel
Technical Specifications
- Bus system: KNX
- Number of buttons: 4
- Number of actuation points: 4
- LED indication: Programmable RGB LEDs with 12 colors
- Mounting method: Flush-mounted
- Material: Thermoplastic plastic
- Surface finishing: Glossy
- Colour: White (RAL 9003)
- Degree of protection: IP40
- Label area included
- No display, no IR sensor, no room temperature controller
- Dimensions (H x L x W): 80mm x 40mm x 80mm
- Weight: 0.15 kg
Key Features
- 4 buttons with 4 action points for versatile system control
- Programmable RGB LEDs with 12 colors for load and system status feedback
- Compatible with ARTEOR plates and support frames
- Flush-mounted installation
- Configurable through ETS tool from KNX association
- Advanced control features including priority management, counting, enable/disable, double action, and conditional action
Professional Installation Requirements
- Installation and configuration should be performed by a qualified electrician familiar with KNX systems and using the ETS configuration tool.
Applications
- Smart home automation control
- Building automation systems
- Lighting, dimmer, shutter, HVAC control
- Scenario management in residential and commercial buildings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy-efficient building management through precise control of lighting, HVAC, and other systems
- Supports smart automation to reduce unnecessary energy consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor KNX Control Unit 4 Buttons 4 Action Points Square White is available for immediate purchase, ideal for smart home and building automation applications.
