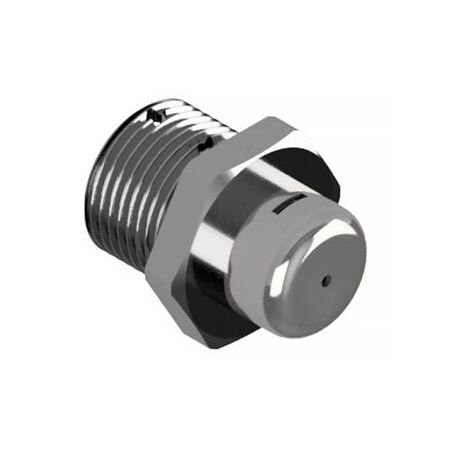

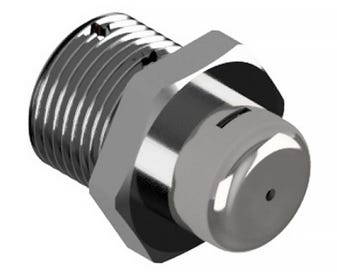

Kopex Metallic Drain Valve M20 | IP66 Rated | -60°C to +200°C | Nickel-Plated Brass by Cabac
The Cabac DV Series Ex e Drainage Device M20 is designed to safely drain water and condensation from enclosures in hazardous areas, certified for Zone 1, 2, 21, and 22 with IP66 rating and a wide temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING KOPEX METALLIC DRAIN VALVE M20
Brand: Cabac
SKU: EXN/M20/DV
Alternatively Known As: Ex e Drain Valve M20, Hazardous Area Drain Valve, DV Series Drainage Device, Explosion Proof Drain Valve
Technical Specifications
- Temperature Range: -60°C to +200°C (-76°F to +392°F)
- IP Rating: IP66
- Material: Nickel-plated brass
- Certification: IMQ, 15 ATEX 012U, IECEx IMQ
- Explosion Protection: Ex II 2 GD, Ex e IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.2 kg
Key Features
- Increased safety with Ex e certification
- Suitable for Zone 1, 2, 21, and 22 hazardous areas
- Allows drainage from enclosure
- Certified by IMQ, 15 ATEX 012U, IECEx IMQ
- Temperature range from -60°C to +200°C
- IP66 rated for dust and water protection
- Made from nickel-plated brass for durability
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Suitable for hazardous areas to prevent water and condensation buildup inside enclosures
- Used in Zone 1, 2, 21, and 22 hazardous locations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Prevents water and condensation buildup which can extend the life of electrical enclosures and reduce waste
- Durable nickel-plated brass construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac DV Series Ex e Drainage Device M20 is available now for immediate purchase. Ideal for use in hazardous area enclosures requiring safe drainage solutions.
