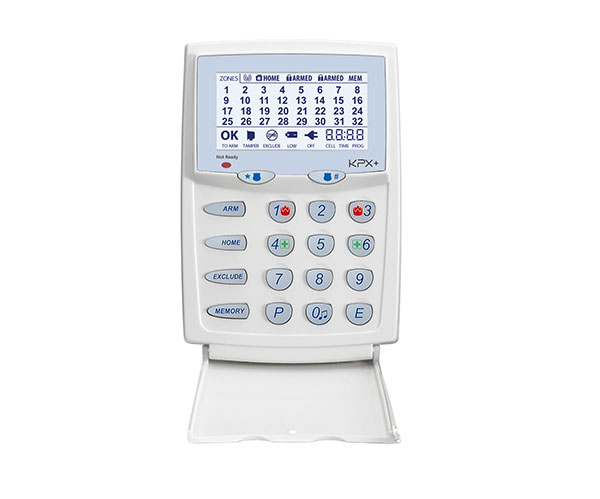

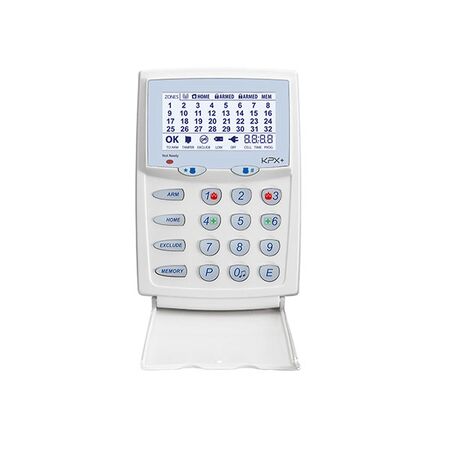

KPX+ LCD Keypad Soft-Touch Buttons White Ness
Ness KPX+ LCD keypad features soft-touch buttons in white. Ideal for Ness alarm panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness KPX Plus Keypad, Ness 106-310 LCD Keypad, Ness Alarm Keypad
Technical Specifications
- Part Number: 106-310
- Display Type: High-contrast LCD with adjustable white and red backlighting
- Operating Voltage: 12VDC supplied by the control panel
- Compatibility: Ness DPlus, D8XCEL, D16XCEL, D8X and D16X control panels
- Controls: Adjustable keypad beep volume and LCD brightness
- System Capacity: Maximum three mixed keypads or four Navigator keypads per system
- Maximum Cable Length: 100m for all keypads combined
- Manufacturing Origin: Made in Australia
- Dimensions (H x L x W): 125mm x 18mm x 82mm
- Weight: 0.204 kg
Key Features
- Soft-touch tactile buttons
- High-contrast LCD icon display
- White backlighting for normal display operation
- Red backlighting for alarm memory indication
- Cellular signal strength and network status display with compatible XCEL panels
- Adjustable keypad beep volume
- Adjustable LCD brightness across 10 levels
- Backward compatible with earlier Ness D8X and D16X panels
Professional Installation Requirements
- Installation and programming should be performed by a suitably qualified security technician. The keypad requires connection to a compatible Ness alarm control panel and should be installed as part of an intruder alarm system in accordance with the manufacturer’s instructions and applicable site requirements.
Applications
- Residential Ness alarm systems
- Commercial and small-business intruder alarm systems
- Replacement or additional keypad installations
- Ness DPlus, D8XCEL and D16XCEL panel installations
- Upgrades for compatible Ness D8X and D16X alarm panels
Standards & Compliance
- AS/NZS 2201.1:2007 is relevant to the design, installation, commissioning and maintenance of the intruder alarm system; Ness does not state product-specific certification for the KPX+ keypad.
Environmental Benefits
- Ness publishes a RoHS certificate of compliance for its products and operations.
- A durable replacement keypad can extend the service life of compatible alarm systems and reduce electronic waste.
- Made in Australia, supporting local product manufacturing and serviceability.
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation’s published warranty conditions and exclusions.
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors.
