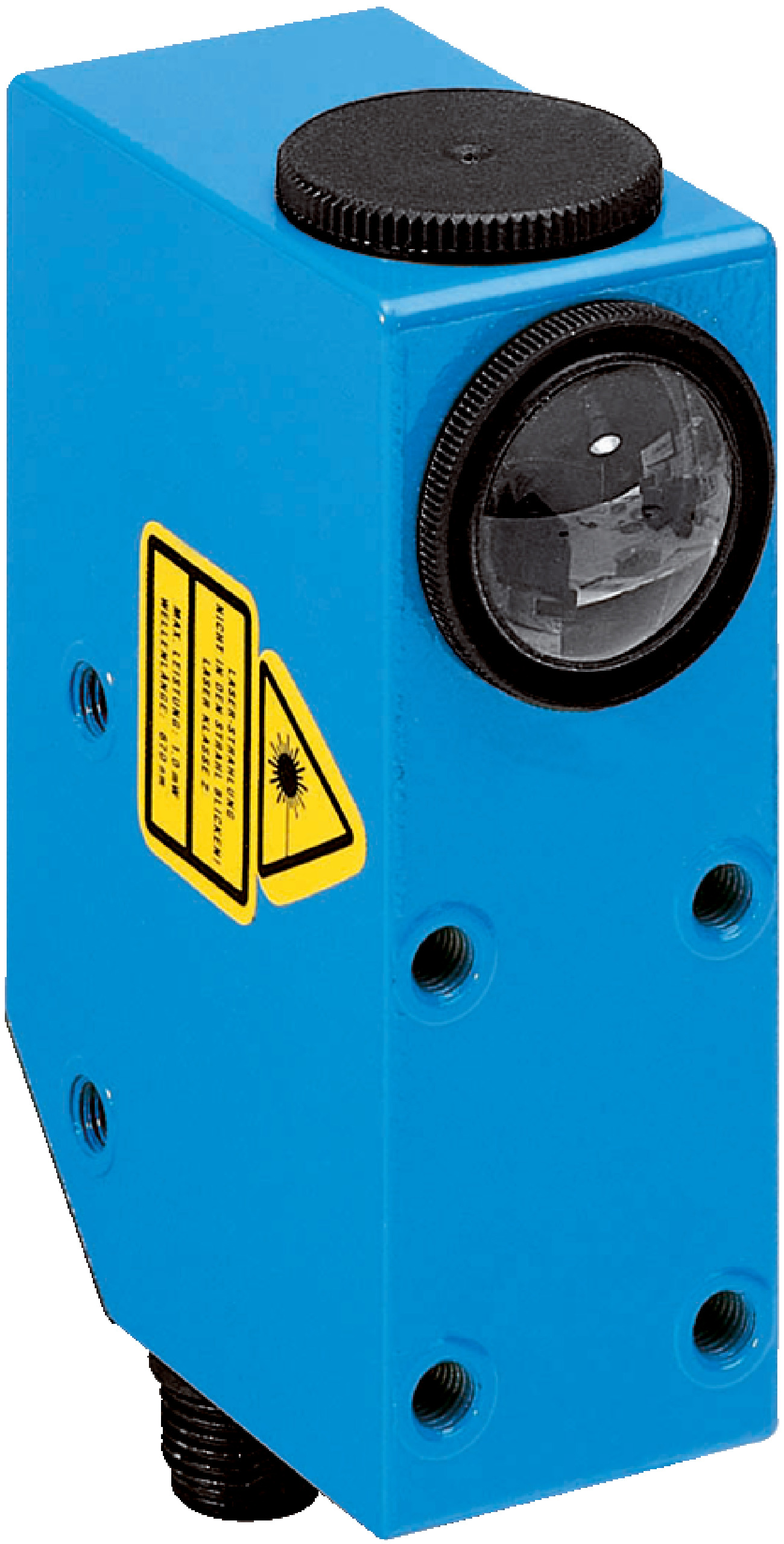

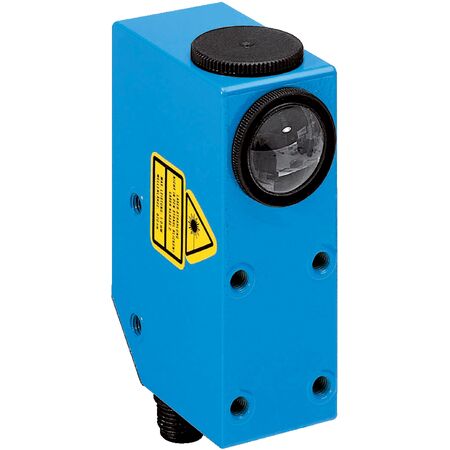

KT8L-P3656 Laser Sensor | 150 mm Sensing Distance | Red Laser Light Source | PNP Output | by SICK
The KT8L-P3656 Laser Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 150 mm and a red laser light source at 655 nm. With a robust zinc diecast housing and IP67 enclosure rating, it ensures reliable performance in various applications, including quality control and robotics. Its fast response time of 30 µs and high switching frequency of 17 kHz make it ideal for dynamic environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: KT8L-P3656 Laser Sensor | 150 mm Sensing Distance | Red Laser Light Source | PNP Output | by SICK
Brand: SICK
SKU: 1041262
Alternatively Known As: KT8L P3656 Laser Sensor, SICK Laser Proximity Sensor, PNP Laser Sensor KT8L
Technical Specifications
- Sensing distance: ≤ 150 mm with tolerance -120 mm / +650 mm
- Light source: Red laser, 655 nm wavelength
- Laser class: II (EN 60825-1:2014, IEC 60825-1:2014)
- Operating distance: 30 mm to 800 mm
- Adjustment: Teach-in button with static 2-point and dynamic teach-in modes
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 80 mA
- Switching frequency: 17 kHz
- Response time: 30 µs
- Switching output: PNP, max output current 100 mA
- Analog output: 0.3 mA to 20 mA
- Protection class: II, reverse polarity and short-circuit protected
- Housing material: Zinc diecast, optics material: Glass
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -10 °C to +45 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 150 mm with tolerance from -120 mm to +650 mm
- Red laser light source with 655 nm wavelength
- Laser class II compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Automatic drift correction for stable operation
- Teach-in button with static 2-point and dynamic teach-in modes
- High switching frequency of 17 kHz and fast response time of 30 µs
- PNP switching output with analog output range 0.3 mA to 20 mA
- Robust zinc diecast housing with IP67 enclosure rating
- Operating temperature range from -10 °C to +45 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Quality control and inspection systems
- Material handling and conveyor systems
- Robotics and manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable zinc diecast housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KT8L-P3656 Laser Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
