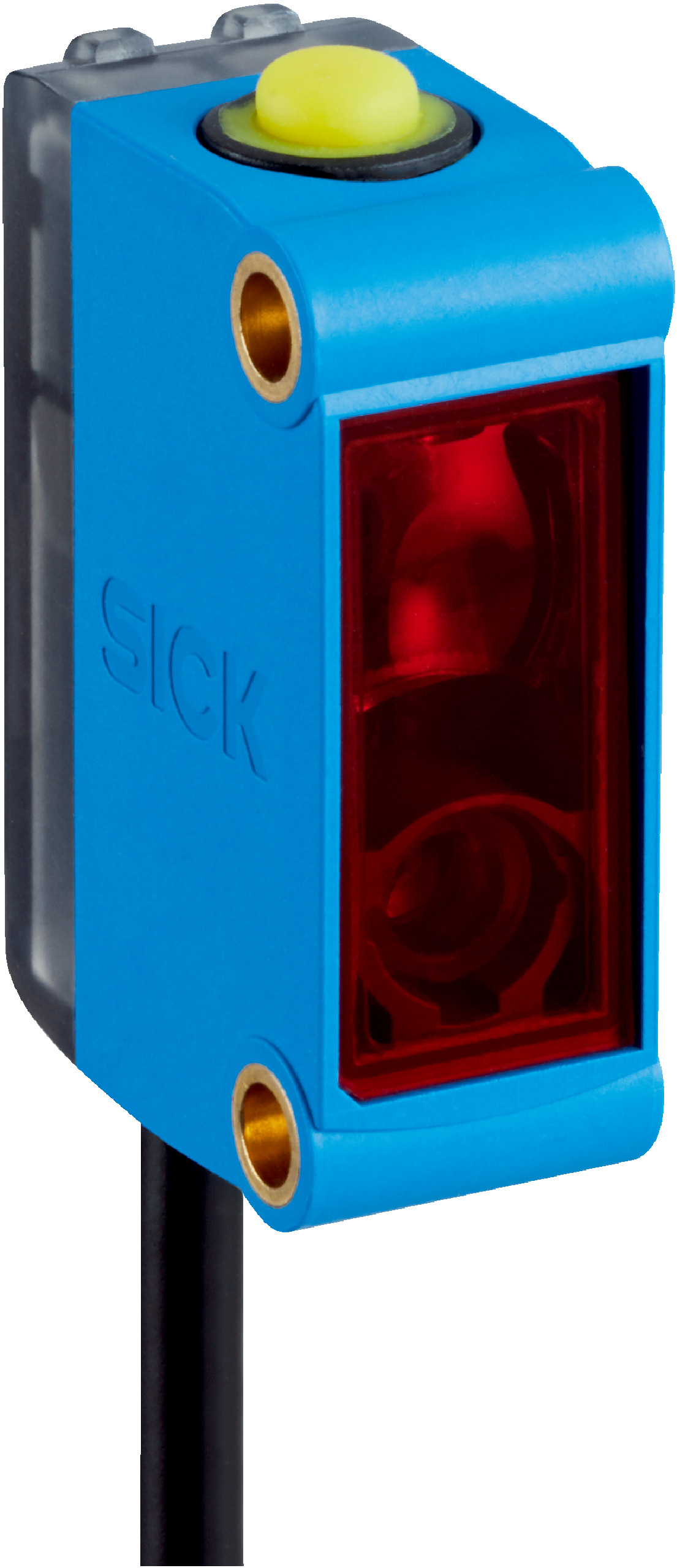

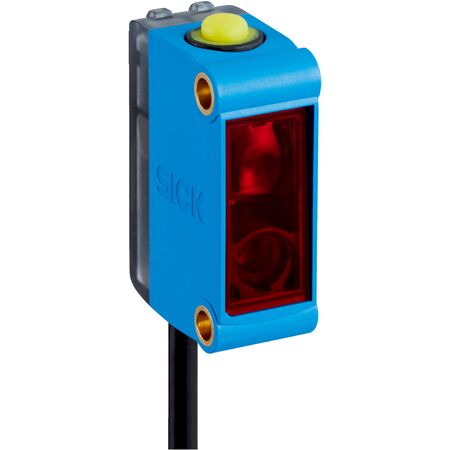

KTM-LN557A2P Laser Sensor | Red Laser Light Source | IP67 Rated | 250 mm Sensing Distance | by SICK
The KTM-LN557A2P Laser Sensor features a red laser light source with a 680 nm wavelength and a sensing distance of up to 250 mm, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 1.5 kHz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for object detection and positioning in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light spot size: Ø 1.8 mm at 250 mm
- Max. web speed: 10 m/s
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 35 mA
- Switching frequency: 1.5 kHz
- Response time: 333 µs
- Switching output: NPN, max output current 100 mA
- Protection class: III, IP67 enclosure rating
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Indicators: Green LED for power, yellow LED for switching output status
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with 680 nm wavelength
- Sensing distance up to 250 mm with ±30 mm tolerance
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 communication with 38.4 kbit/s data transmission rate
- Two NPN switching outputs with light/dark switching mode
- High switching frequency of 1.5 kHz and response time of 333 µs
- IP67 rated enclosure for robust protection
- Cable with M12 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and positioning
- Manufacturing process control
- Material handling and conveyor systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental damage and waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LN557A2P Laser Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
