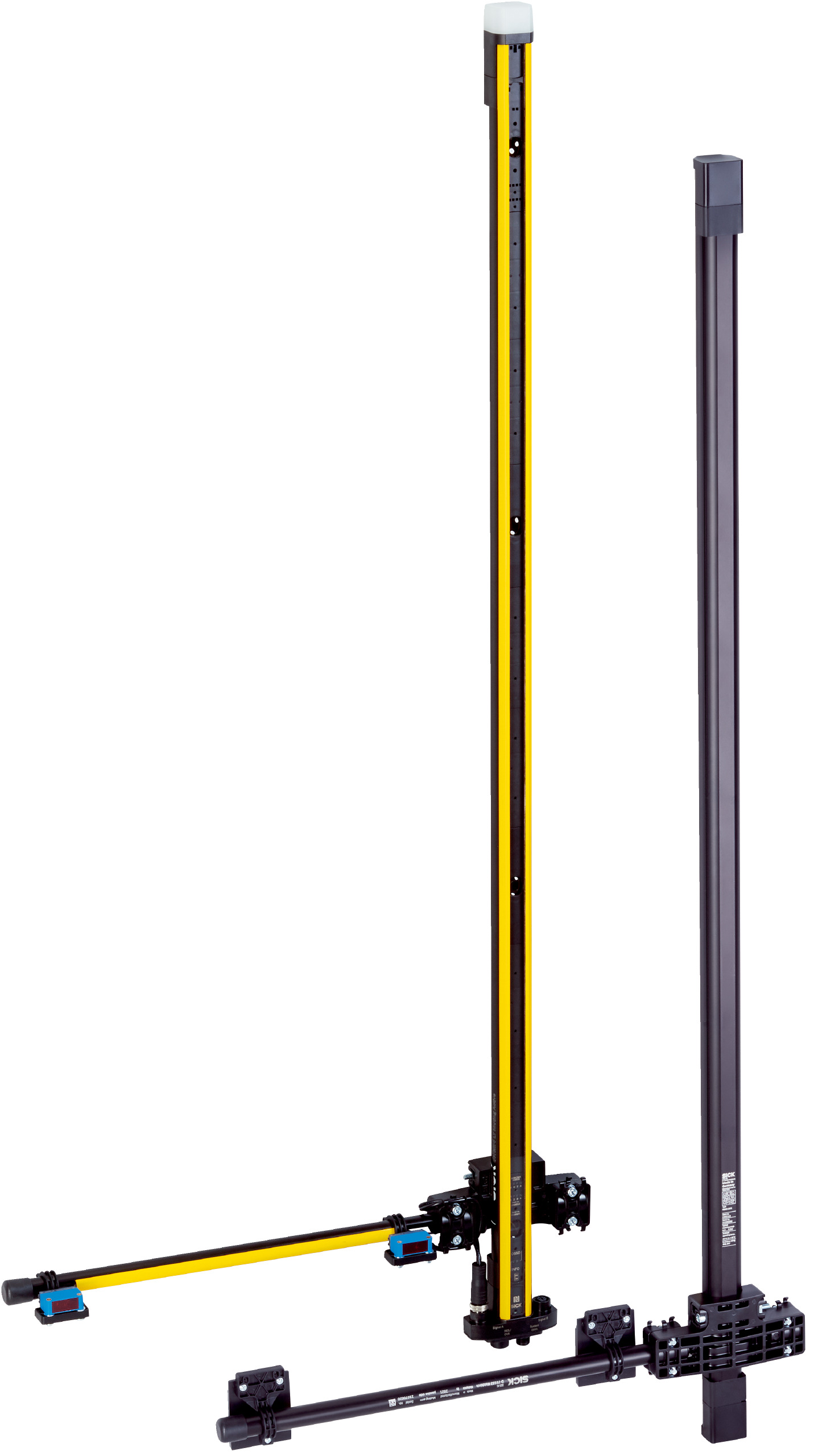

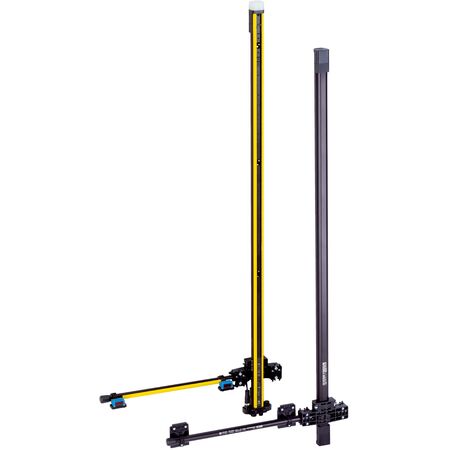

L-muting Left Safety Sensor | Active/Passive Muting System | Type 4 Safety | IP65/IP67 Rated | by SICK
The L-muting Left safety sensor features an active/passive muting system with 4 beams and 300 mm separation, making it ideal for industrial automation safety systems. With a Type 4 safety rating and SIL 3 performance level, this sensor ensures reliable operation in harsh environments, while its IP65/IP67 enclosure protects against dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTem4 LT Muting A/P
- Functional principle: Active/passive muting system
- Number of beams: 4 with 300 mm separation
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.8 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 7 W typical
- Output signals: 2 PNP semiconductors, short-circuit protected
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 150mm x 3200mm x 50mm
- Weight: 2.5 kg
Key Features
- Active/passive muting system with 4 beams and 300 mm beam separation
- Scanning range from 0.5 m to 3.2 m
- Type 4 safety (IEC 61496-1) with SIL 3 and PL e performance levels
- Integrated LED end caps for alignment and status indication
- Features include beam coding, restart interlock, sensor gap monitoring, and muting override
- Near Field Communication (NFC) for configuration and diagnostics
- IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety systems
- Machine guarding in normal industrial environments
- Muting systems for differentiating man and material
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65/IP67 rated housing reduces need for frequent replacements
- Energy-efficient 24 V DC operation minimizes power consumption
- Long mission time of 20 years reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK L-muting Left deTem4 LT Muting A/P safety sensor is available for immediate purchase, ideal for industrial safety and automation applications.
