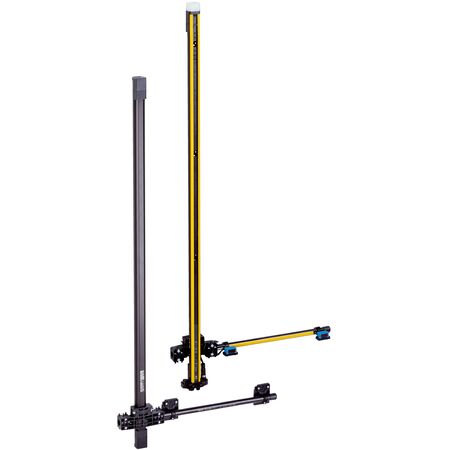

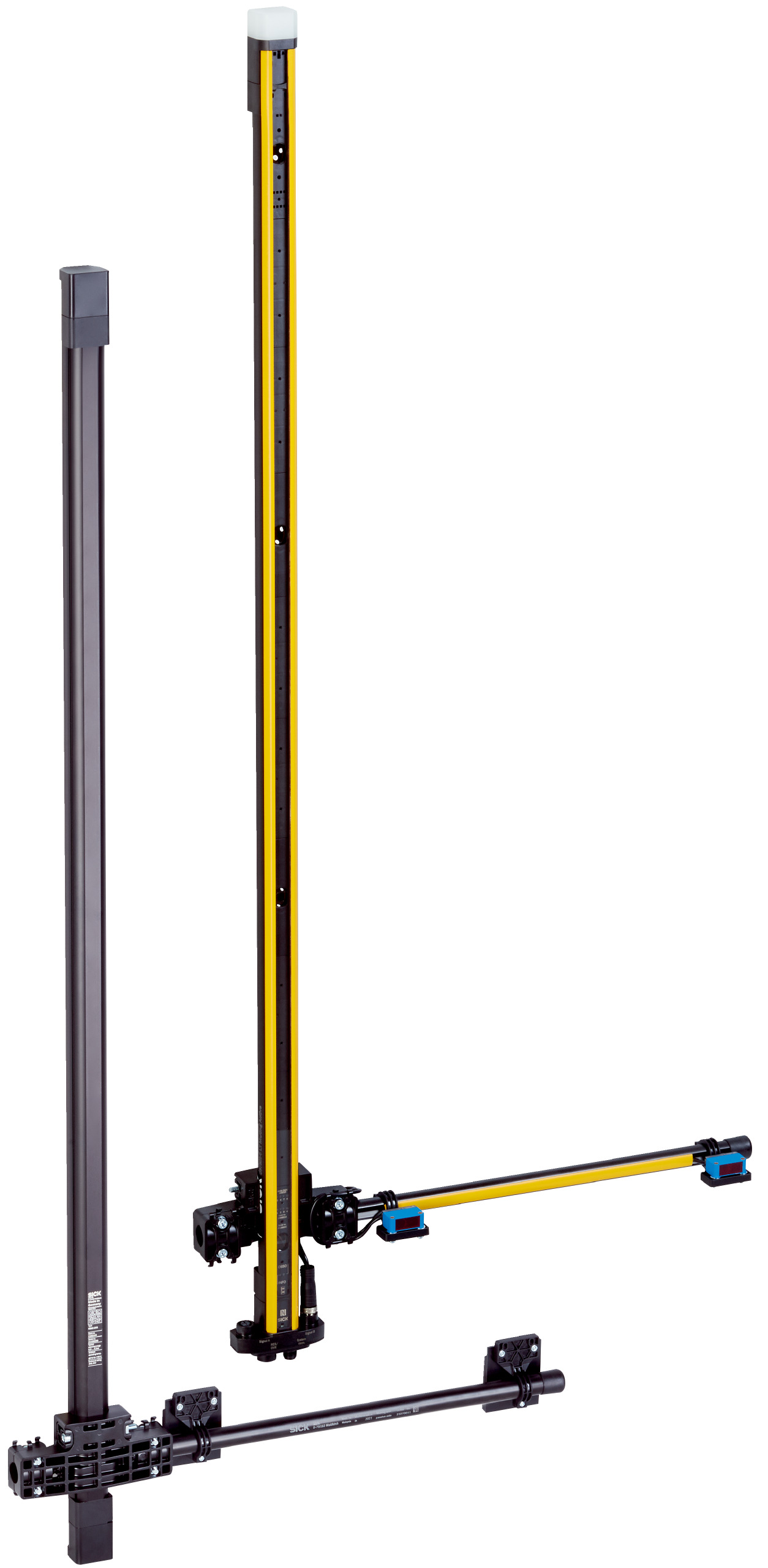

L-muting Right Safety Sensor | 4 Beams & 3.2 m Scanning Range | Type 4 Safety | by SICK
The L-muting Right Safety Sensor is designed for industrial automation safety systems, featuring an active/passive muting system with 4 beams and a 3.2 m scanning range. With Type 4 safety certification and SIL 3 compliance, it ensures reliable human-material differentiation, making it ideal for machine guarding in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTem4 LT Muting A/P
- Application: Normal industrial environment
- Functional principle: Active/passive
- System part: Muting system
- Scanning range: 3.2 m
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.8 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- Beam coding: Yes
- Restart interlock: Yes
- Muting type: L-muting right
- C1 muting release: Yes
- Concurrence monitoring: Yes
- Monitoring of total muting time: Yes
- Sensor gap monitoring: Yes
- Muting with override: Yes
- Exit monitoring: Yes
- End of muting by ESPE: Yes
- System connection: Male connector M12, 8-pin
- Muting sensors connection: 2 × female connector, M12, 5-pin
- Reset/override pushbutton connection: Female connector M12, 5-pin
- Configuration method: Hard wired
- Display elements: LEDs
- Application diagnostic output: PNP semiconductor, short-circuit protected
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 7 W (DC)
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 120mm x 3200mm x 40mm
- Weight: 1.5 kg
Key Features
- Active/passive muting system with 4 beams and 3.2 m scanning range
- Type 4 safety (IEC 61496-1) with SIL 3 and Category 4 (ISO 13849-1)
- L-muting right human-material differentiation with C1 muting release
- Integrated LED end caps and diagnostic LEDs for alignment aid
- Near Field Communication (NFC) for configuration and diagnostics
- Short response time of 20 ms and multiple safety monitoring functions
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant occupational health and safety standards.
Applications
- Industrial automation safety systems
- Machine guarding in normal industrial environments
- Muting systems for differentiating between man and material
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Supports safer industrial processes reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK deTem4 LT Muting A/P L-muting Right Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
