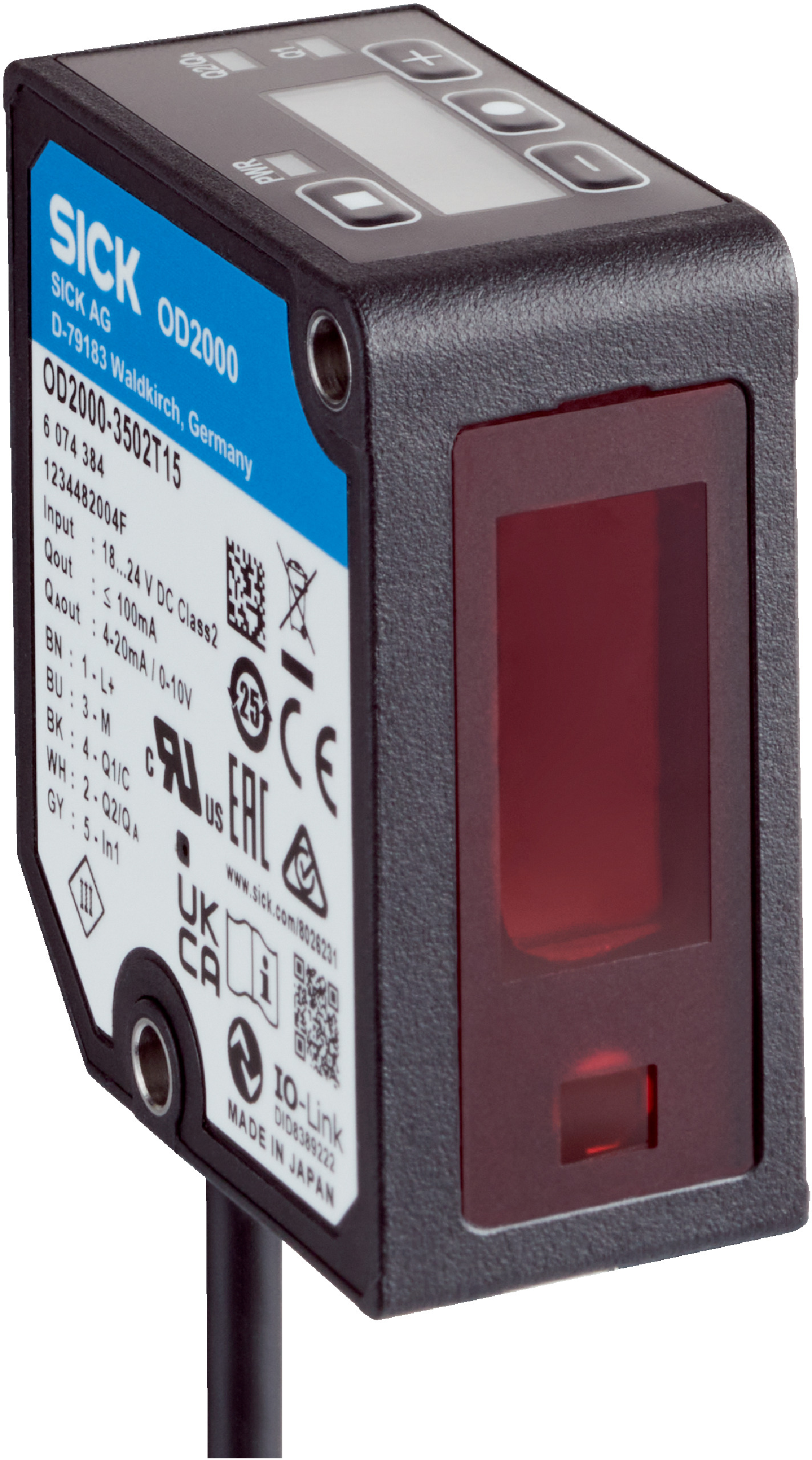

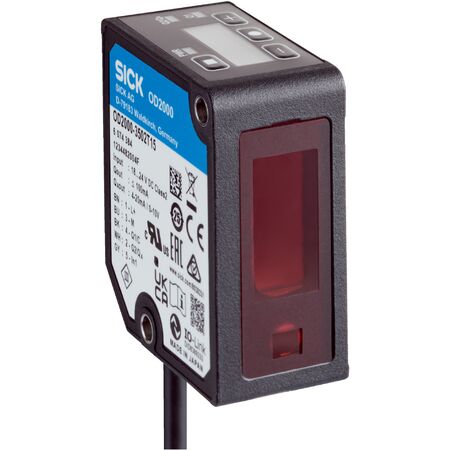

Laser Distance Sensor SICK OD2000-3502T15 | 100 mm to 600 mm Range | 20 µm Repeatability | IP67 Rated | by SICK
The SICK OD2000-3502T15 Laser Distance Sensor offers a measuring range from 100 mm to 600 mm with high repeatability of 20 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 0.533 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in demanding environments, perfect for quality control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 100 mm to 600 mm
- Repeatability: 20 µm
- Linearity: ± 500 µm
- Response time: ≥ 0.533 ms
- Measuring frequency: ≤ 7.5 kHz
- Output time: ≥ 0.1333 ms
- Light source: Red laser, visible light
- Laser class: 2
- Supply voltage: DC 18 V to 24 V ± 10%
- Power consumption: 1.5 W at 24 V DC
- Display: OLED with status LEDs
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection: Cable with male connector, 30 cm
- Digital output: 1 PNP/NPN selectable
- Analog output: 4 mA to 20 mA or 0 V to 10 V selectable
- Resolution: 16 bit
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration and shock resistance compliant with EN 60068 standards
- Dimensions (H x L x W): 60mm x 50mm x 27mm
- Weight: 0.1 kg
Key Features
- Measuring range from 100 mm to 600 mm
- High repeatability of 20 µm
- Response time ≥ 0.533 ms with measuring frequency up to 7.5 kHz
- Visible red laser light source with a spot size of Ø 600 µm at 350 mm
- Adjustable average value or media filter and multiple switching modes
- OLED display with status LEDs for easy operation
- IP67 rated enclosure for robust protection
- Multiple output options including IO-Link, digital and analog outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 1.5 W reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD2000-3502T15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
