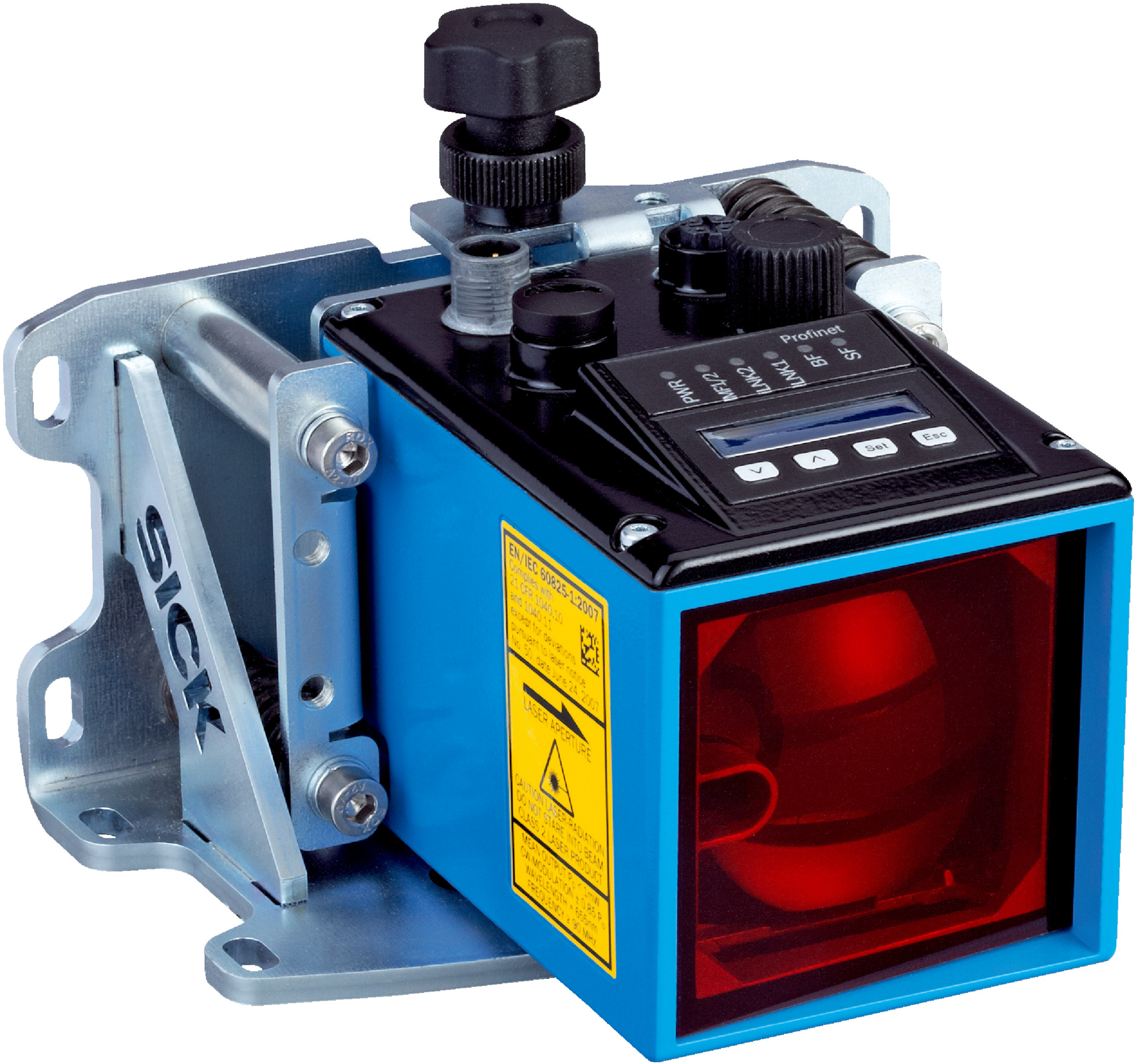

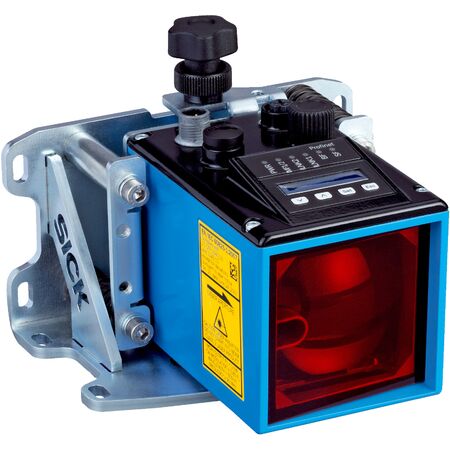

Laser Distance Sensor DL100-21AA2102 | 0.15m to 100m Range | High Resolution & Fast Response | IP65 Rated | by SICK
The Laser Distance Sensor DL100-21AA2102 offers a measuring range from 0.15 m to 100 m, making it ideal for precise indoor distance measurement in industrial automation. With high resolution options and a fast response time of just 2 ms, this sensor ensures accurate readings for speed and acceleration monitoring. Its robust IP65-rated metal housing guarantees durability, making it perfect for safety and quality control in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DL100-21AA2102 | 0.15m to 100m Range | High Resolution & Fast Response | IP65 Rated | by SICK
Brand: SICK
SKU: 1052686
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, Reflective Laser Sensor
Technical Specifications
- Dimensions (H x L x W): 83mm x 100mm x 69mm
- Weight: 1.6 kg
Key Features
- Measuring range from 0.15 m to 100 m on diamond grade reflective tape
- High resolution options: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
- Repeatability of 0.5 mm and measurement accuracy of ±2 mm
- Fast response time of 2 ms and measurement cycle time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Maximum movement speed up to 15 m/s and acceleration ≤ 15 m/s²
- Digital outputs with push-pull PNP/NPN type and multifunctional input
- Supply voltage DC 18 V to 30 V with current consumption under 250 mA
- Robust metal housing with IP65 enclosure rating and protection class III
- Operating temperature range from -20 °C to +55 °C (up to +75 °C with cooling case)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor distance measurement with reflective targets
- Industrial automation and process control
- Speed and acceleration monitoring
- Safety and quality control in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 250 mA reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DL100-21AA2102 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise indoor distance measurement applications.
