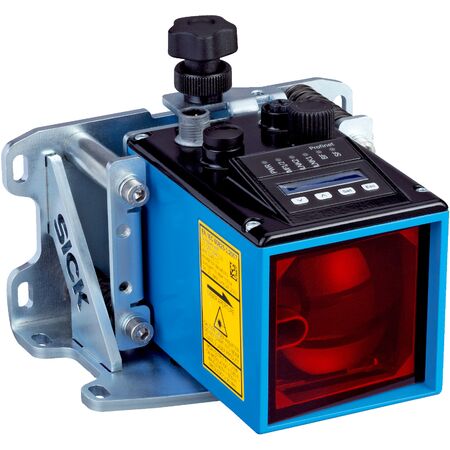

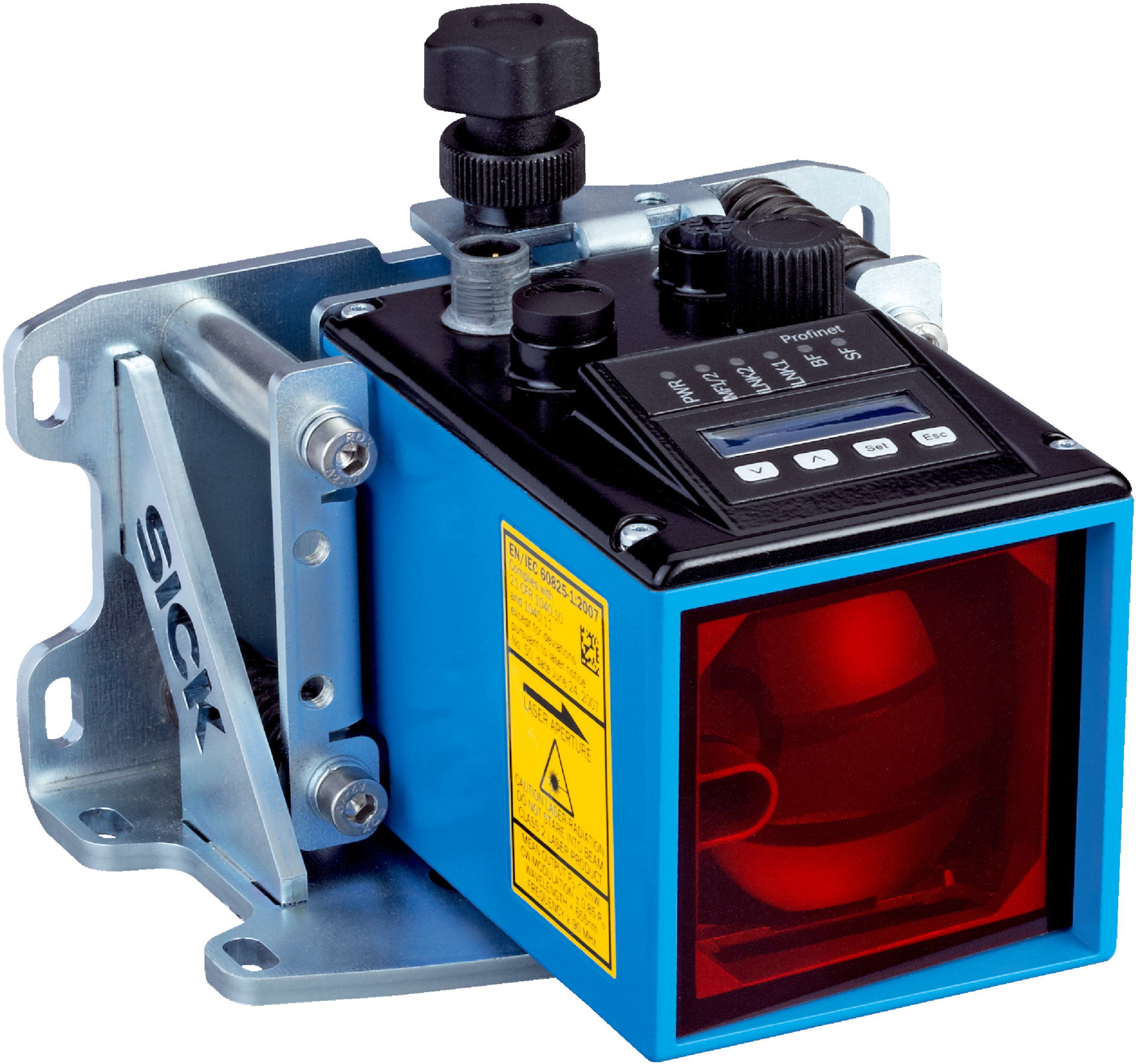

Laser Distance Sensor DL100-21AB2103 | 0.15m to 100m Range | High Resolution Options | IP65 Rated | by SICK
The Laser Distance Sensor DL100-21AB2103 offers a measuring range from 0.15 m to 100 m, making it ideal for precise indoor distance measurement in industrial automation. With high resolution options and a robust IP65-rated metal housing, this sensor ensures reliable performance in demanding environments, perfect for speed monitoring and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 83mm x 100mm x 69mm
- Weight: 1.6 kg
Key Features
- Measuring range from 0.15 m to 100 m on diamond grade reflective tape
- High resolution options: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
- Repeatability of 0.5 mm and measurement accuracy of ±2 mm
- Fast response time of 2 ms and measurement cycle time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Digital outputs with push-pull PNP/NPN type and multifunctional input
- Robust metal housing with IP65 enclosure rating
- Operating temperature range from -20 °C to +55 °C (up to +75 °C with cooling case)
- 6 digit 5x7 dot matrix display with LEDs for indication
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor distance measurement with reflector targets
- Industrial automation and process control
- Speed and distance monitoring in manufacturing
- Safety and warning systems in industrial environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing ensures long product life reducing waste
- Low power consumption with supply voltage DC 18 V to 30 V
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK DL100-21AB2103 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
